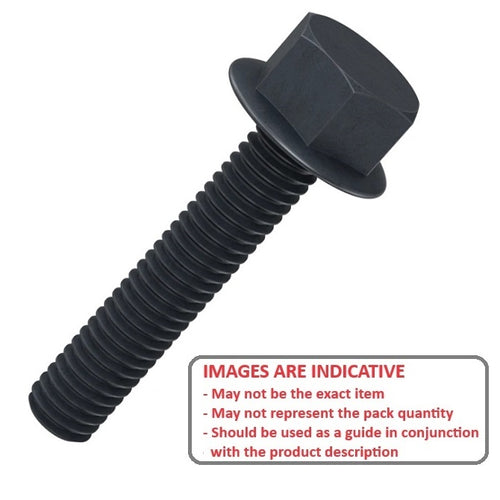

SC064C-051-HW-NB - Datasheet
MBA
Category Information
Screws - Hex Washer Head - Black NylonBlack Nylon Hex Washer Head Screws. 1/4 UNC and UNF only
- This category will be discontinued when this item is sold.
- This item is priced to quit.
- Backorders or orders for previously listed items in the category will only be available for very large orders.
- Non Conductive.
- Non Corrosive.
- Non Magnetic.
- Lightweight.
- Vibration Resistant.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

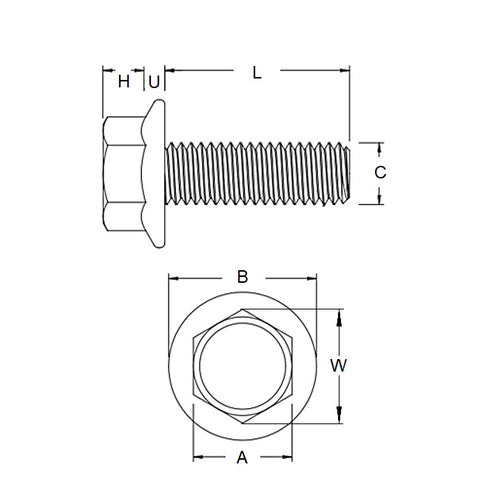

- Thread Size (C) : 1/4-20 UNC (6.35mm)
- Thread Length (L)
50.8
mm
(Equiv. 2 in.) - Material Black Nylon
- Max Head Diameter 9.53 mm
- Max Head Height 4.83 mm
- Type Hex Head With Integral Washer
- Pitch 1.270 mm
- Threads Per Inch 20 TPI
- Quantity Per Card 3
- Material Black Nylon
