SC064C-051-P-PH-A - Datasheet
MBA
Category Information

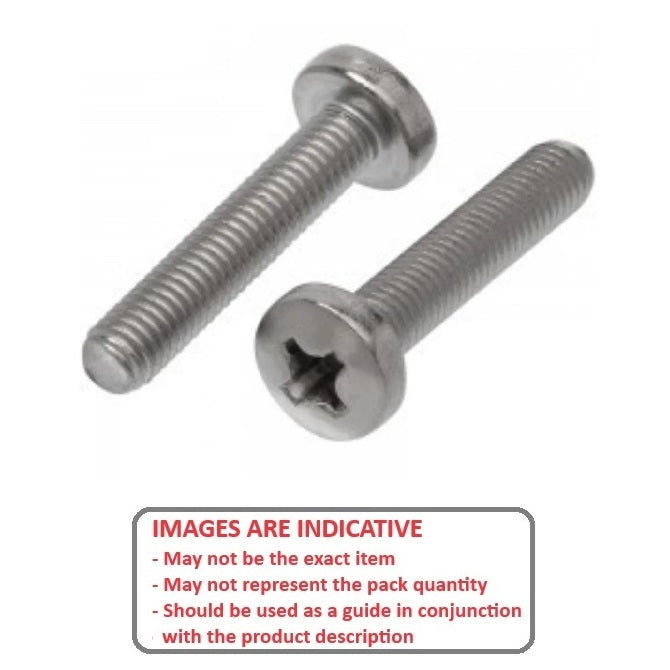

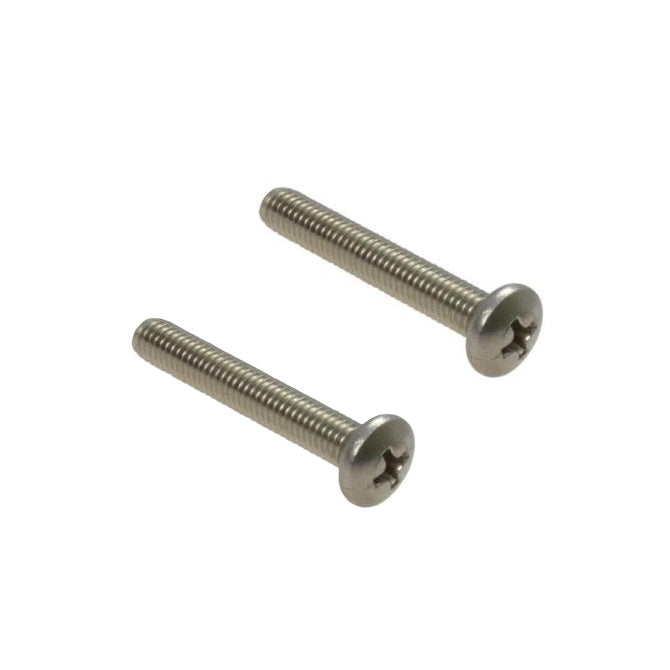

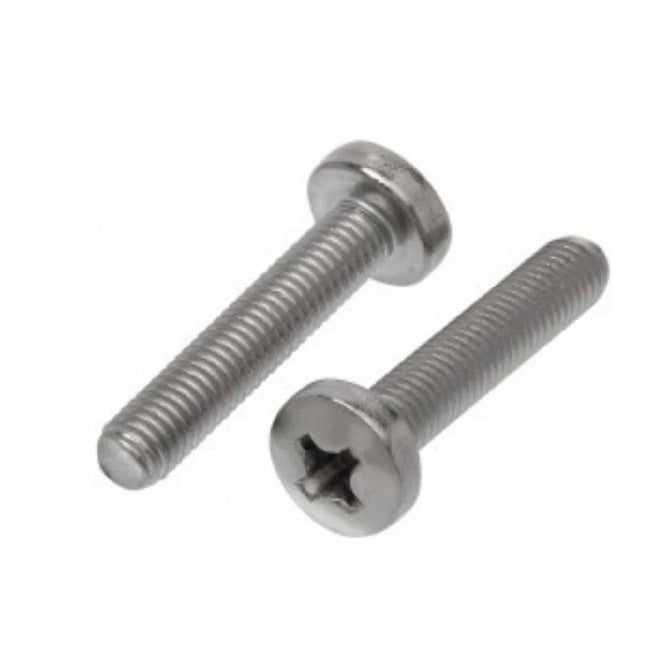

Screws - Pan Head - AluminiumAluminium Pan Head Screws. UNC metal thread machine screws
- An expanded range may be available on special order. Please enquire.
- Nuts sold separately - See Fasteners - Nuts.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

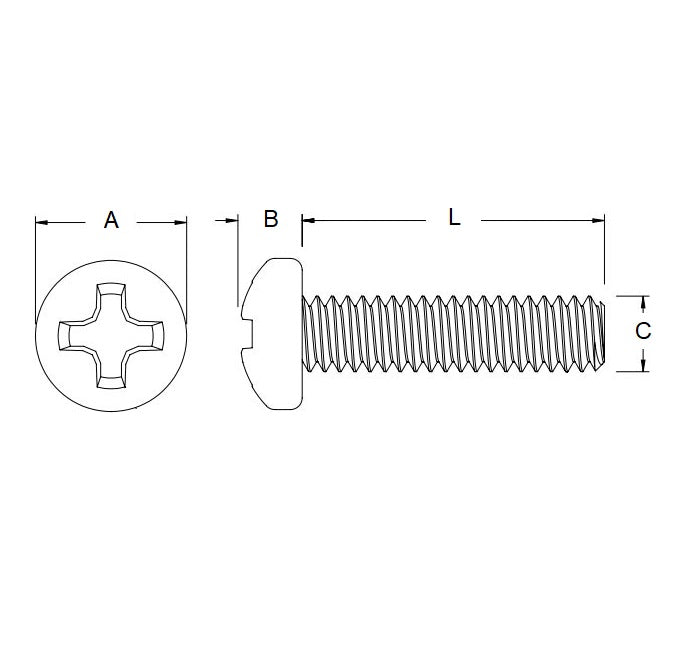

- Thread Size (C) : 1/4-20 UNC (6.35mm)
- Thread Length (L)
50.8
mm
(Equiv. 2 in.) - Material Aluminium
- Max Head Diameter 12.5 mm
- Max Head Height 3.7 mm
- Pitch 1.270 mm
- Threads Per Inch 20 TPI
- Material Aluminium
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- MicroFast MSPL1432
