KF064C-050-KN-SFT-TP - Datasheet

MBA

Category Information

Knobs - Knurled - Female - Soft Touch Thermoplastic

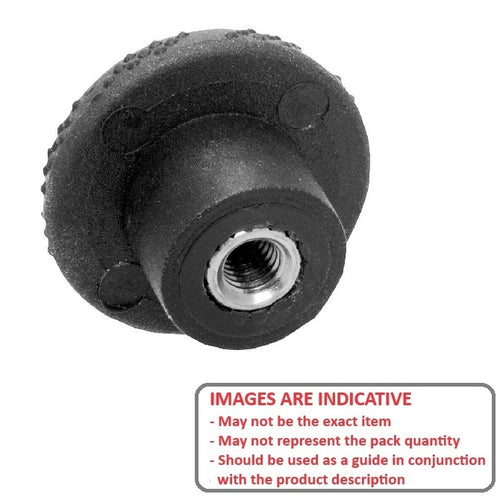

Soft Touch Thermoplastic Female Knurled Knobs. Soft Touch Black Thermoplastic with Steel Insert.

    Product Data

    • Thread Size : 1/4-20 UNC (6.35mm)

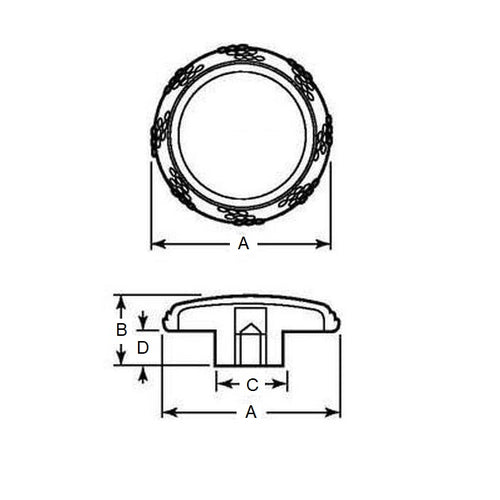

    • Head Diameter (A) 50.04 mm
    • Overall Height (B) 16.51 mm
    • Hub Diameter (C) 19.56 mm
    • Hub Height (D) 5.33 mm
    • Material Brass
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

    Cross References

    • Reid Tool® RK-29
    • RK29
