KF064C-045-3L-SFT - Datasheet
MBA
Category Information

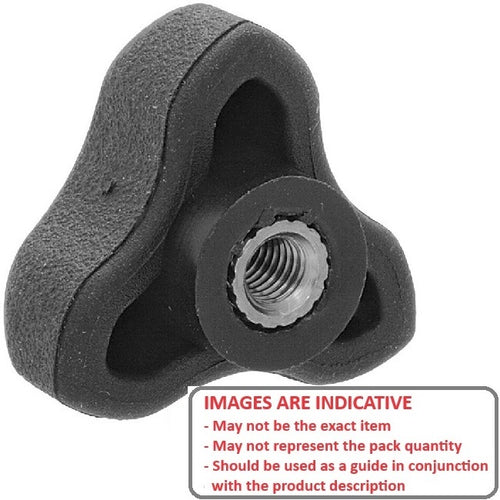

Knobs - Lobe - Three Lobe - Female - Soft TouchSoft Touch Female Three Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 1/4-20 UNC (6.35mm)

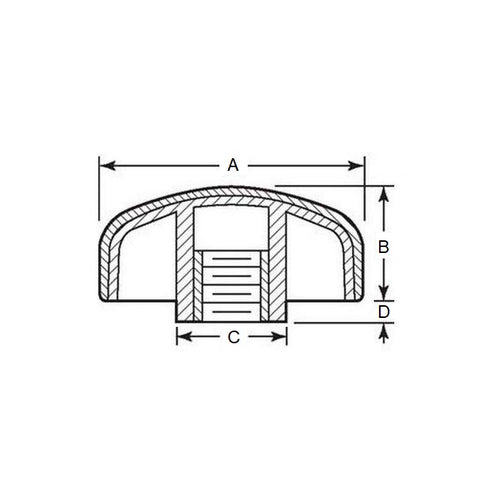

- Head Diameter (A)
44.96
mm
(Equiv. 1.77 in.) - Thread Length
17.8
mm
(Equiv. 0.701 in.) - Colour Black
- Hub Diameter (C) 19.05 mm
- Hub Length (D) 3.05 mm
- Knob Height (B) 22.61 mm
- Material Zinc Plated Brass
Product Compliance and Data
Additional Resources
Cross References
- 2776K7
- RK314
- RK-314
