KF064C-041-3L-BHST - Datasheet
MBA
Category Information

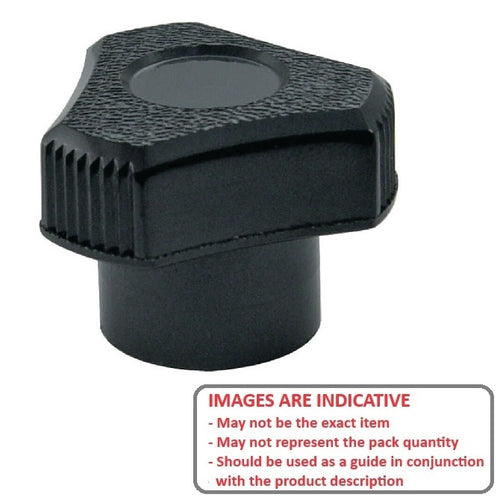

Knobs - Lobe - Three Lobe - Female - Blind Hole Solid TopBlind Hole Solid Top Female Three Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 1/4-20 UNC (6.35mm)

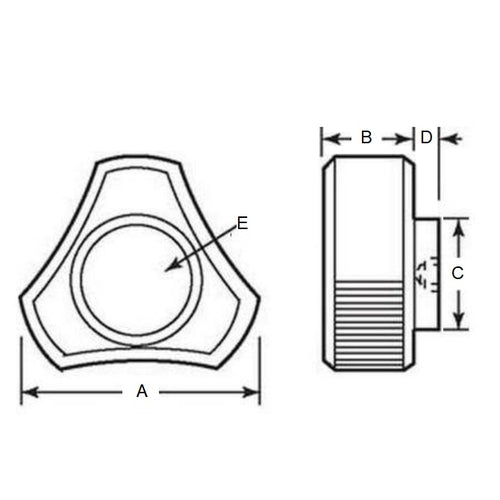

- Head Diameter (A)
41.28
mm
(Equiv. 1.625 in.) - Thread Length
9.5
mm
(Equiv. 0.374 in.) - Colour Black
- Hub Diameter (C) 19.05 mm
- Hub Length (D) 7.94 mm
- Knob Height (B) 14.29 mm
- Recess Diameter (E) 19.94 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- DK-607
- DK607
