KF064C-040-6L-PBR - Datasheet

MBA

Category Information

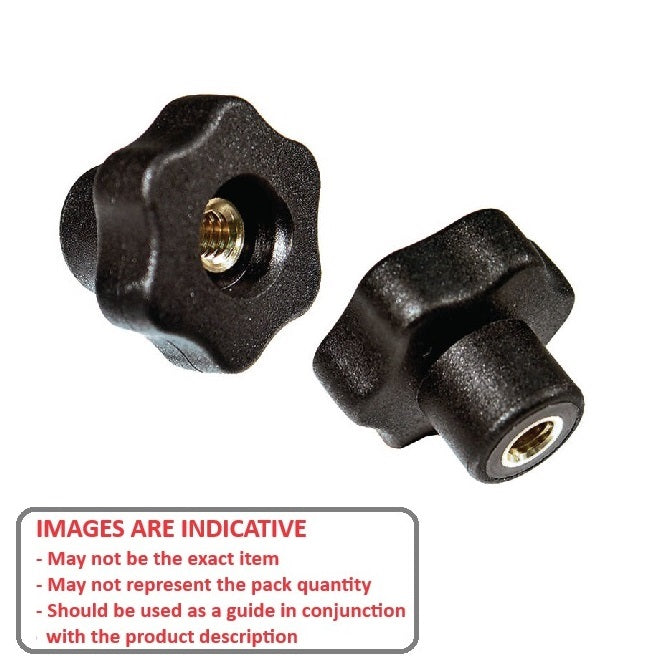

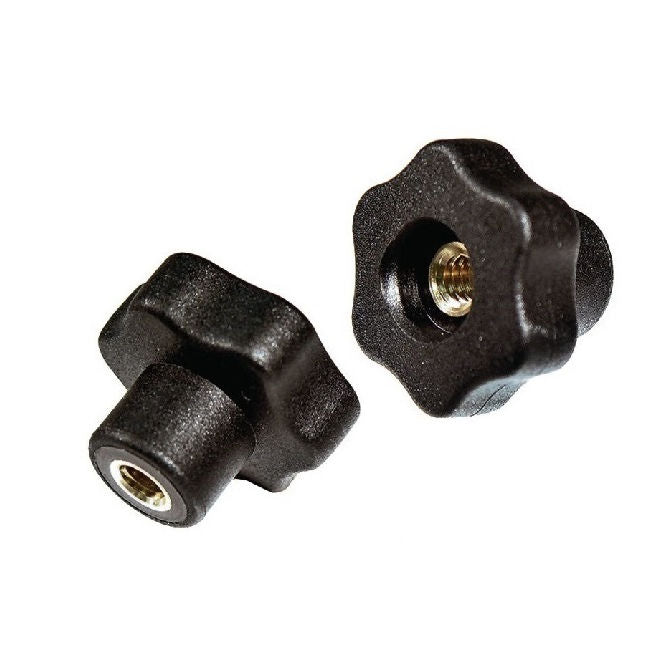

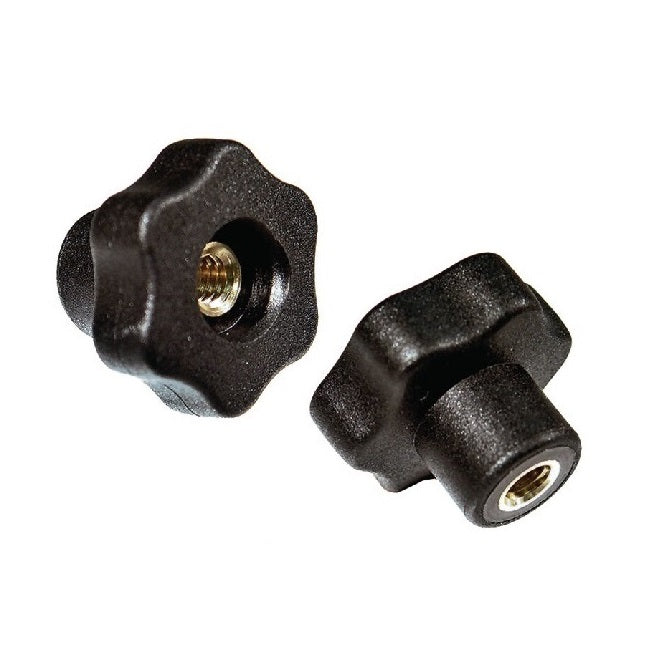

Knobs - Lobe - Six Lobe - Female - Through Hole

Through Hole Female Six Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 1/4-20 UNC (6.35mm)

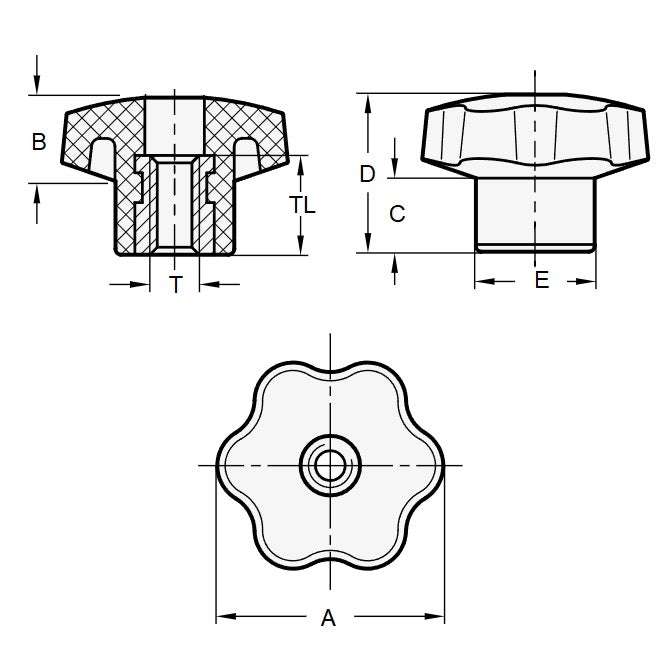

  • Head Diameter (A) 40.13 mm
  • Thread Length 9.5 mm
  • Colour Black
  • Hub Diameter (E) 17.02 mm
  • Hub Length (C) 12.45 mm
  • Knob Height (D) 23.88 mm
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Reid Tool® JCL-77
  • JCL77
