KF064C-040-6L-BR - Datasheet
MBA
Category Information

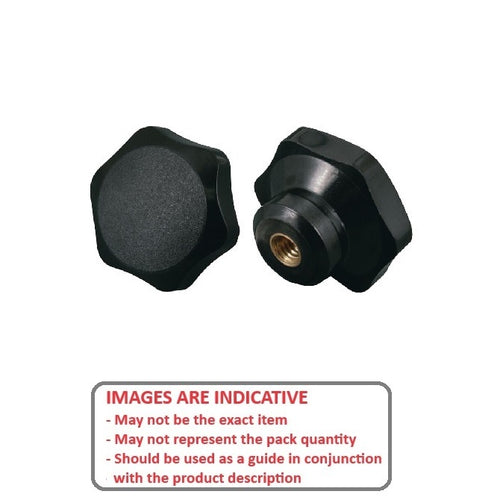

Knobs - Lobe - Six Lobe - Female - StandardStandard Female Six Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 1/4-20 UNC (6.35mm)

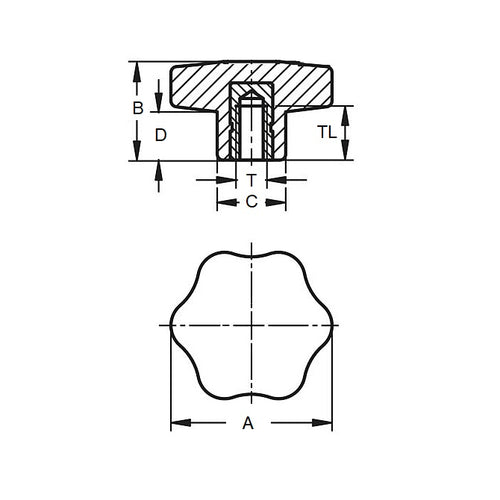

- Head Diameter (A)
40.13
mm
(Equiv. 1.58 in.) - Thread Length
9.5
mm
(Equiv. 0.374 in.) - Colour Black
- Hub Diameter (C) 17.02 mm
- Hub Length (F) 12.45 mm
- Knob Height (B) 23.88 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- JCL64
- JCL-64
