KM064C-040-CS-SS25 - Datasheet

MBA

Product Data

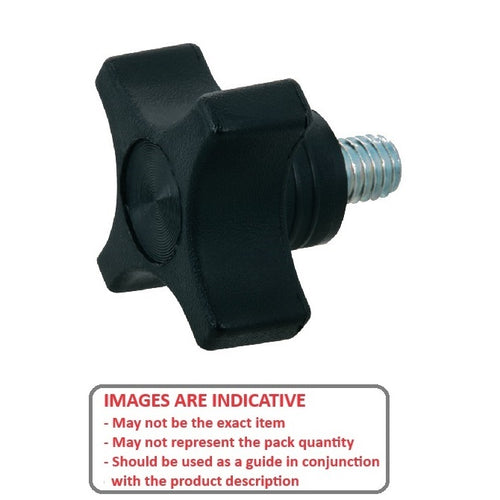

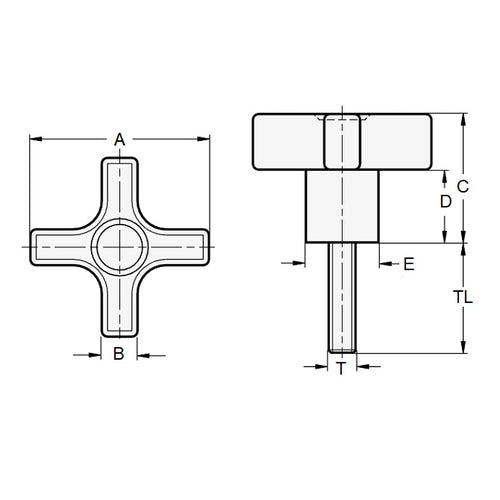

• Thread Size : 1/4-20 UNC (6.35mm)
• Head Diameter (A) 40.13 mm
• Thread Length 24.9 mm
• Knob Length (C) 12.45 mm
• Hub Diameter (E) 16.00 mm
• Hub Length (D) 24.13 mm
• Material Stainless Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Knobs PDF Quick Guide by Thread Size


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• Reid Tool® JCL-229
• JCL229
