KF064C-040-6L-SP - Datasheet
MBA
Category Information

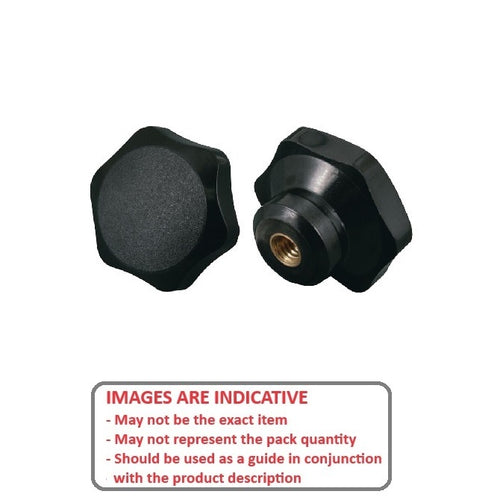

Knobs - Lobe - Six Lobe - Female - StandardStandard Female Six Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 1/4-20 UNC (6.35mm)

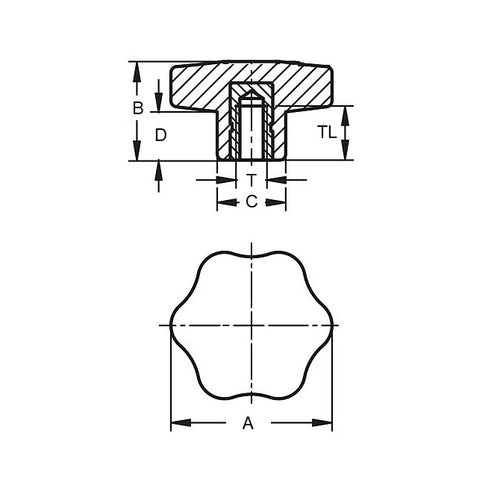

- Head Diameter (A) 39.88 mm
- Colour Black
- Hub Diameter (C) 23.11 mm
- Knob Height (B) 11.94 mm
- Material Plated Steel
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® JCL-1380
- JCL1380
