KF064C-040-KN-SFT-TP - Datasheet

MBA

Category Information

Knobs - Knurled - Female - Soft Touch Thermoplastic

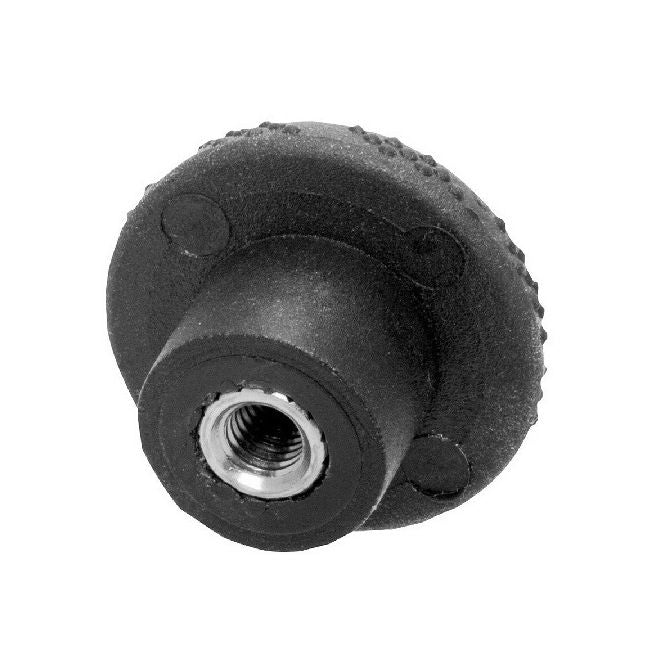

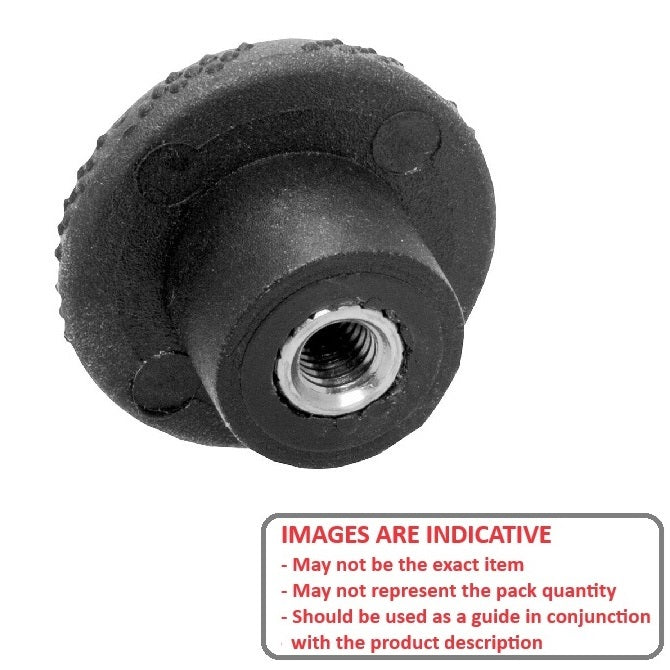

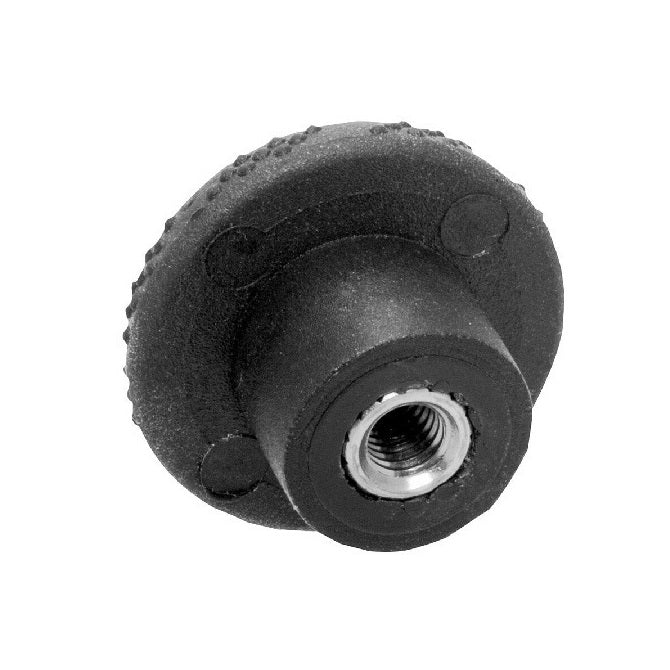

Soft Touch Thermoplastic Female Knurled Knobs. Soft Touch Black Thermoplastic with Steel Insert.

    Product Data

    • Thread Size : 1/4-20 UNC (6.35mm)
    • Head Diameter (A) 39.88 mm
      (Equiv. 1.57 in.)
    • Overall Height (B) 16.64 mm
    • Hub Diameter (C) 19.05 mm
    • Hub Height (D) 8.13 mm
    • Material Brass
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

    Cross References

    • RK26
    • RK-26
