KF064C-040-4L - Datasheet

MBA

Category Information

Knobs - Lobe - Four Lobe - Female - Standard

Standard Female Four Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 1/4-20 UNC (6.35mm)
  • Head Diameter (A) 39.88 mm
  • Thread Length 9.7 mm
  • Colour Black
  • Hub Diameter (C) 16.00 mm
  • Hub Length (D) 8.89 mm
  • Knob Height (B) 27.94 mm
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Reid Tool® JCL-90
  • JCL90
View full details

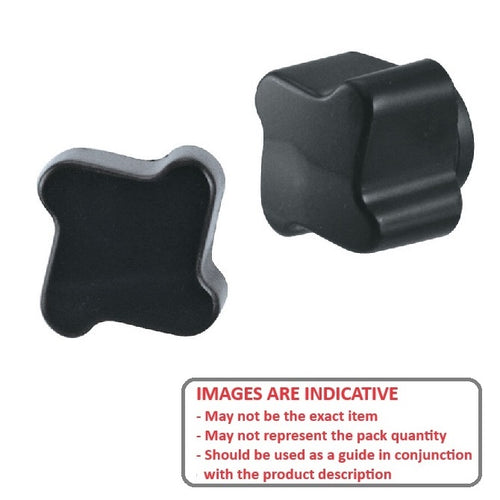

KF064C-040-4LDiagramKF064C-040-4LImage
