KM064C-040-3L - Datasheet
MBA
Category Information
Knobs - Lobe - Three Lobe - Male - StandardStandard Male Three Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 1/4-20 UNC (6.35mm)

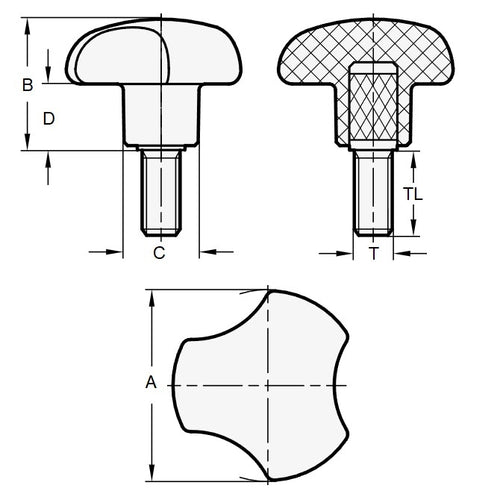

- Head Diameter (A)
39.88
mm
(Equiv. 1.57 in.) - Thread Length
31.8
mm
(Equiv. 1.252 in.) - Colour Black
- Hub Diameter (C) 16.00 mm
- Hub Length (D) 7.87 mm
- Knob Height (B) 24.89 mm
- Material Plated Steel
Product Compliance and Data
Additional Resources
Cross References
- RST-135
- RST135
