Miniature Bearings Australia
KF064C-040-3L-P - Datasheet
MBA
Category Information

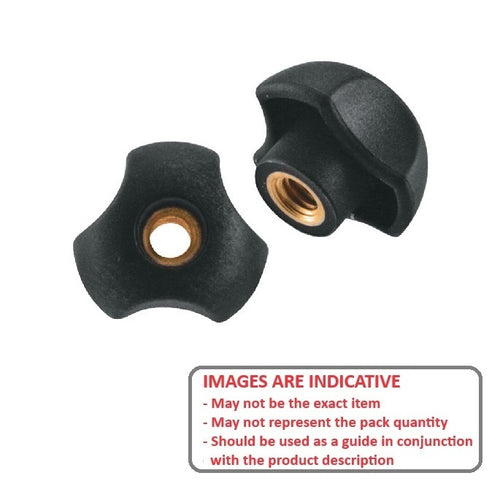

Knobs - Lobe - Three Lobe - Female - Through HoleThrough Hole Female Three Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 1/4-20 UNC (6.35mm)

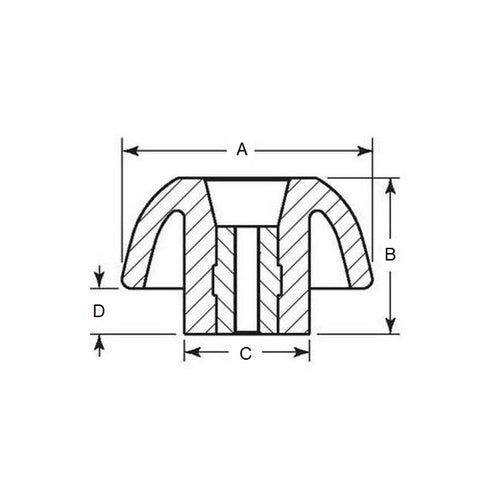

- Head Diameter (A) 39.88 mm
- Thread Length 14.0 mm
- Colour Black
- Hub Diameter (C) 16.00 mm
- Hub Length (D) 7.87 mm
- Length (B) 24.89 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® RST-123
- RST123
