KF064C-040-7L-SP - Datasheet
MBA
Category Information

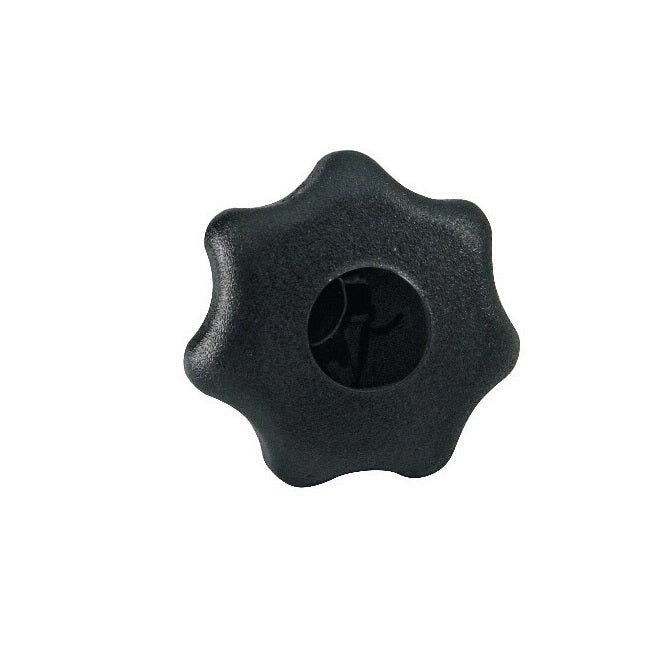

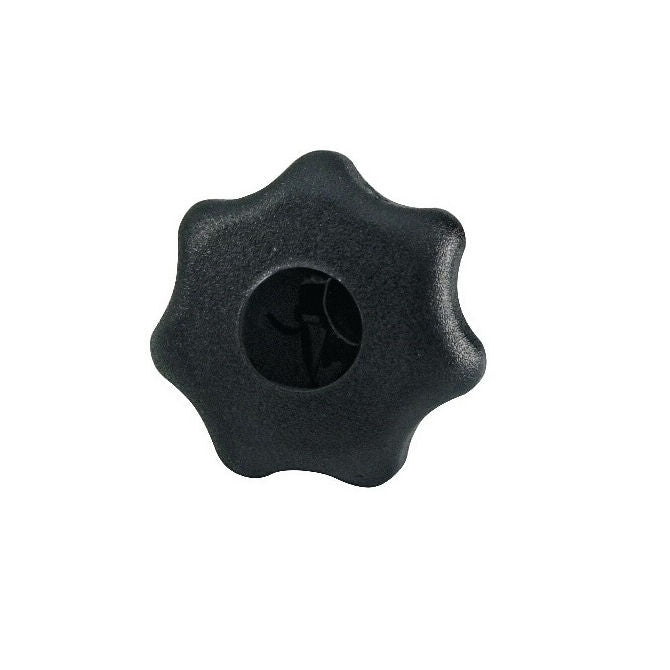

Knobs - Lobe - Seven Lobe - Female - StandardStandard Female Seven Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 1/4-20 UNC (6.35mm)
- Head Diameter (A)
39.88
mm
(Equiv. 1.57 in.) - Thread Length
14.0
mm
(Equiv. 0.551 in.) - Colour Black
- Hub Diameter (C) 13.46 mm
- Hub Length (D) 9.91 mm
- Knob Height (B) 24.89 mm
- Material Plated Steel Hub
Product Compliance and Data
Additional Resources
Cross References
- KBP-297
- KBP297
