Miniature Bearings Australia
KF064C-040-5L-BR12B - Datasheet
MBA
Category Information

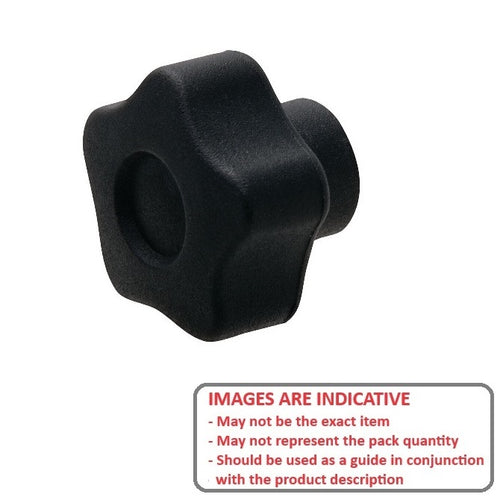

Knobs - Lobe - Five Lobe - Female - StandardStandard Female Five Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data

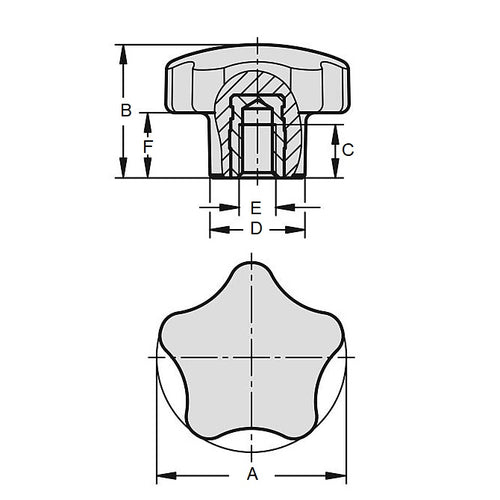

- Thread Size : 1/4-20 UNC (6.35mm)
- Head Diameter (A) 39.88 mm
- Thread Length 11.9 mm
- Colour Black
- Hub Diameter (C) 14.99 mm
- Hub Length (F) 13.97 mm
- Knob Height (B) 25.91 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® KHY-530
- KHY530
