Miniature Bearings Australia
KF064C-039-5LSFT - Datasheet
MBA
Category Information

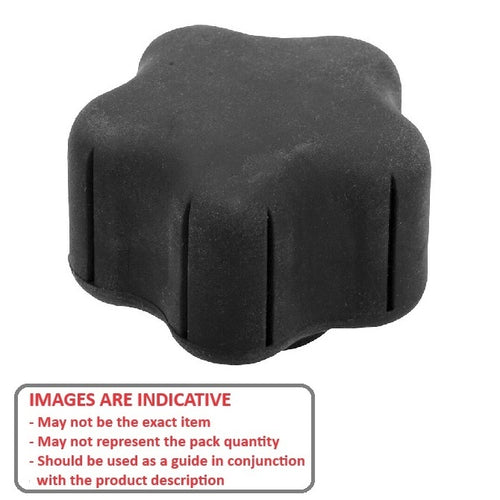

Knobs - Lobe - Five Lobe - Female - Soft Touch - StandardStandard Soft Touch Female Five Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 1/4-20 UNC (6.35mm)

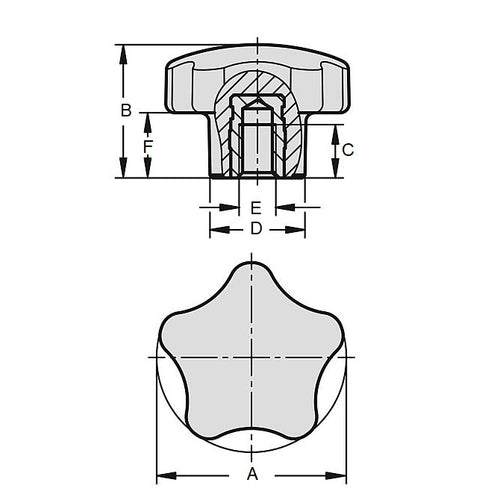

- Head Diameter (A)
38.61
mm
(Equiv. 1.52 in.) - Thread Length
12.7
mm
(Equiv. 0.5 in.) - Colour Black
- Hub Diameter (C) 17.53 mm
- Hub Length (D) 4.57 mm
- Knob Height (B) 27.69 mm
- Material Plated Brass
Product Compliance and Data
Additional Resources
Cross References
- 61125K11
- RK-56
- RK56
