Miniature Bearings Australia
KF064C-038-3L - Datasheet
MBA
Category Information
Knobs - Lobe - Three Lobe - Female - StandardStandard Female Three Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 1/4-20 UNC (6.35mm)

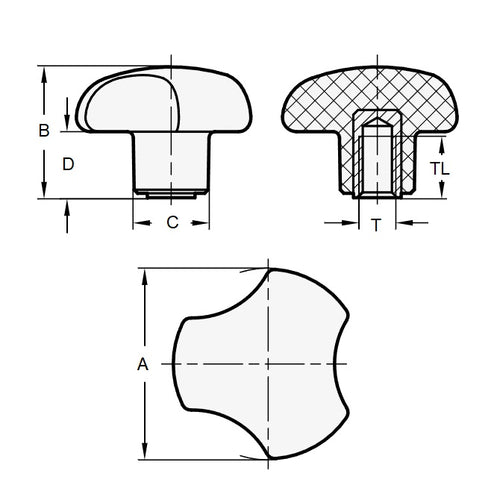

- Head Diameter (A)
38.10
mm
(Equiv. 1.5 in.) - Thread Length
9.9
mm
(Equiv. 0.39 in.) - Colour Black
- Hub Diameter (C) 16.00 mm
- Hub Length (D) 7.87 mm
- Length (B) 24.89 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- RST-115
- RST115
