KM064C-033-6L13-SP - Datasheet
MBA
Category Information
Knobs - Lobe - Six Lobe - MaleMale Six Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 1/4-20 UNC (6.35mm)

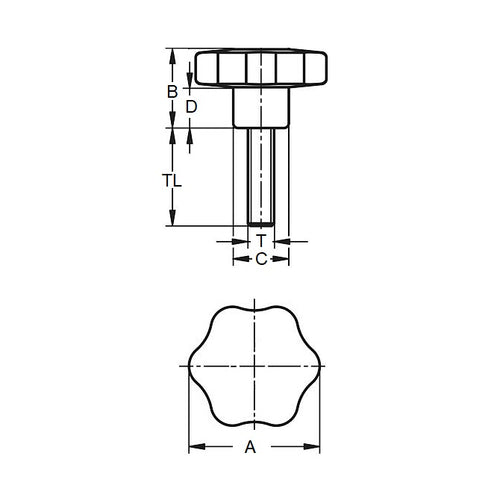

- Head Diameter (A)
33.02
mm
(Equiv. 1.3 in.) - Thread Length
12.7
mm
(Equiv. 0.5 in.) - Colour Black
- Hub Diameter (C) 19.05 mm
- Hub Length (D) 9.91 mm
- Knob Height (B) 23.11 mm
- Material Plated Steel
Product Compliance and Data
Additional Resources
Cross References
- RST60
- RST-60
