KF064C-032-4L - Datasheet
MBA
Category Information

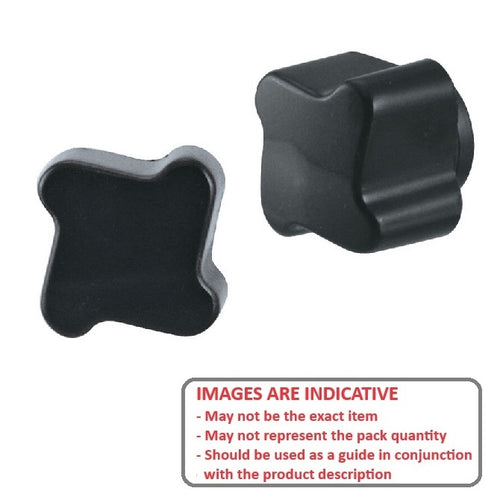

Knobs - Lobe - Four Lobe - Female - StandardStandard Female Four Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 1/4-20 UNC (6.35mm)
- Head Diameter (A)
32.00
mm
(Equiv. 1.26 in.) - Thread Length
9.9
mm
(Equiv. 0.39 in.) - Colour Black
- Hub Diameter (C) 18.03 mm
- Hub Length (D) 4.06 mm
- Knob Height (B) 22.10 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- RST76
- RST-76
