KM064C-032-4L19 - Datasheet
MBA
Category Information

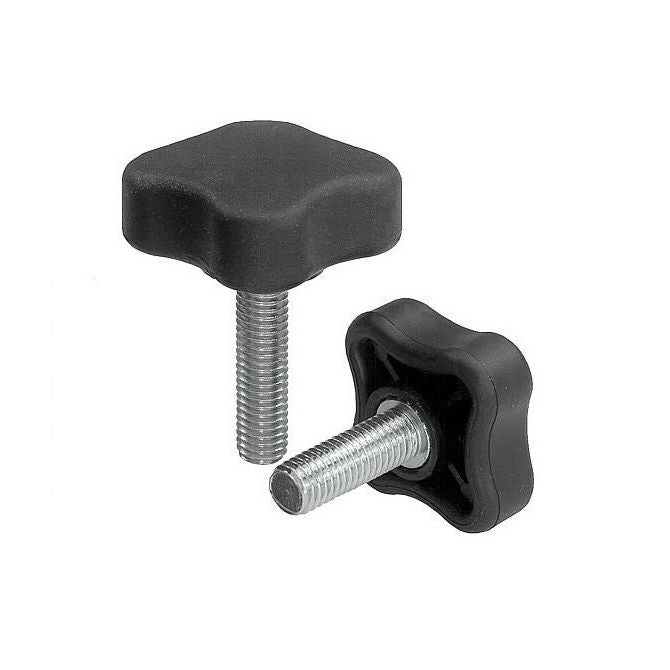

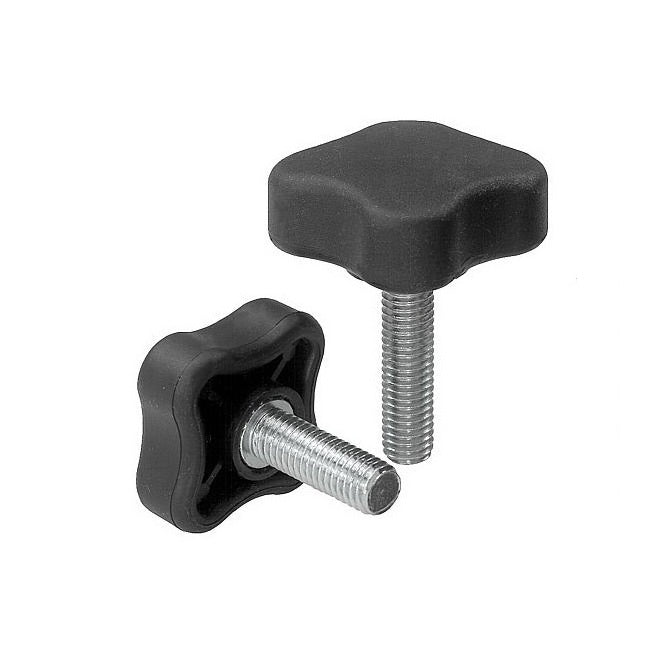

Knobs - Lobe - Four Lobe - Male - StandardStandard Male Four Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 1/4-20 UNC (6.35mm)
- Head Diameter (A)
32.00
mm
(Equiv. 1.26 in.) - Thread Length
19.1
mm
(Equiv. 0.752 in.) - Colour Black
- Hub Diameter (C) 18.03 mm
- Hub Length (D) 4.06 mm
- Knob Height (B) 22.10 mm
- Material Plated Steel
Product Compliance and Data
Additional Resources
Cross References
- RST-82
- RST82
