KF064C-032-CH-NY - Datasheet

MBA

Category Information

Knobs - Cross - Female - Through Hole

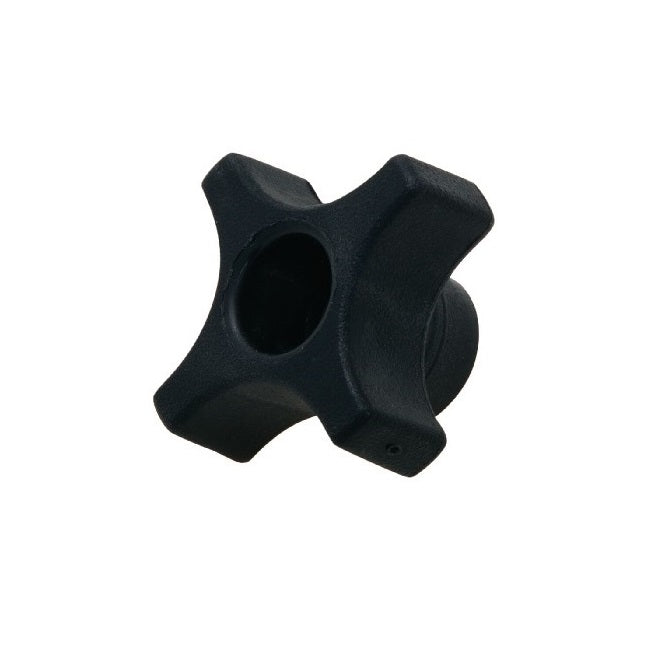

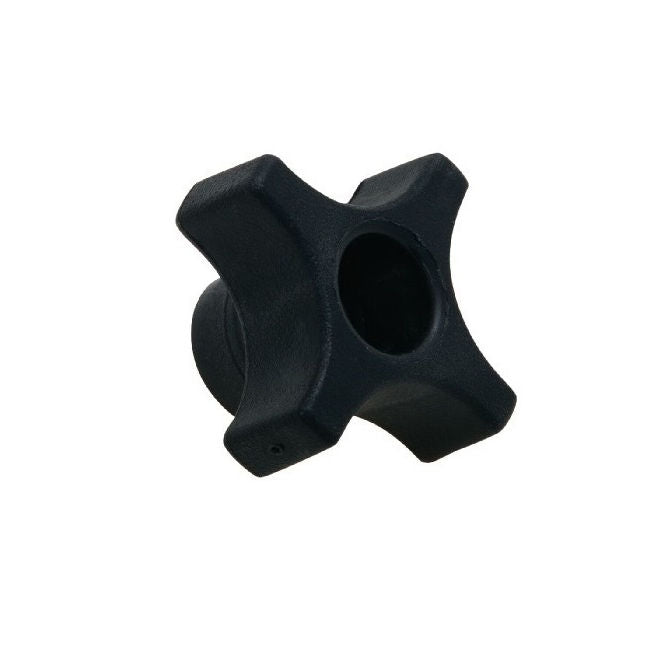

Through Hole Female Cross Knobs. Black Plastic Knob with a Brass insert.

  • 4 Prong cross knobs to go onto threads. Through Hole.

Product Data

  • Thread Size : 1/4-20 UNC (6.35mm)

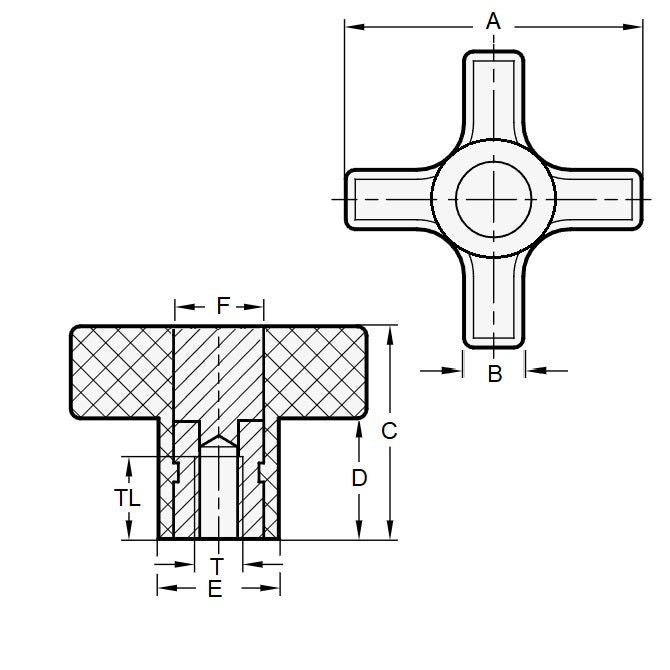

  • Head Diameter (A) 31.75 mm
  • Thread Length 9.5 mm
  • Colour Black
  • Hub Diameter (E) 12.70 mm
  • Hub Length (D) 12.70 mm
  • Knob Height (C) 22.23
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 5993K22
  • Reid Tool® DK-1186
  • DK1186
