KF064C-030-4L-P - Datasheet

MBA

Category Information

Knobs - Lobe - Four Lobe - Female - Through Hole

Through Hole Female Four Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 1/4-20 UNC (6.35mm)
  • Head Diameter (A) 29.97 mm
  • Thread Length 9.7 mm
  • Colour Black
  • Hub Diameter (E) 14.99 mm
  • Hub Length (C) 7.87 mm
  • Knob Height (D) 22.10 mm
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Reid Tool® JCL-150
  • JCL150
View full details

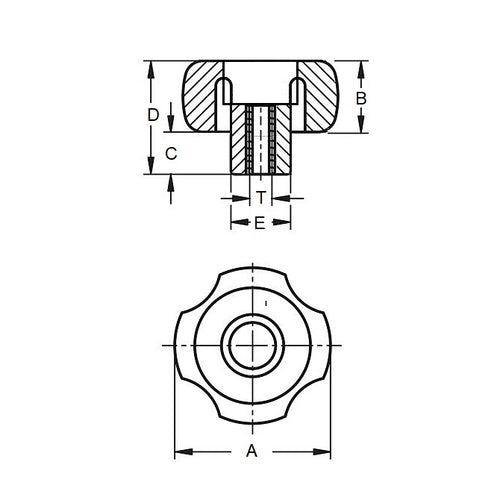

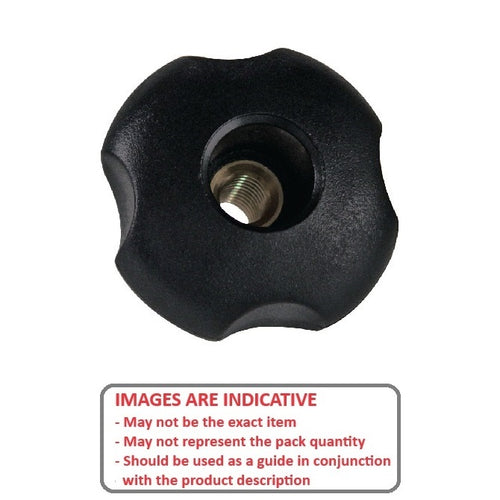

KF064C-030-4L-PDiagramKF064C-030-4L-PImage
