KF064C-030-6L-PBR - Datasheet

MBA

Category Information

Knobs - Lobe - Six Lobe - Female - Through Hole

Through Hole Female Six Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 1/4-20 UNC (6.35mm)
  • Head Diameter (A) 29.97 mm
    (Equiv. 1.18 in.)
  • Thread Length 9.5 mm
    (Equiv. 0.374 in.)
  • Colour Black
  • Hub Diameter (E) 14.99 mm
  • Hub Length (C) 9.91 mm
  • Knob Height (D) 20.07 mm
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • JCL-76
  • JCL76
View full details

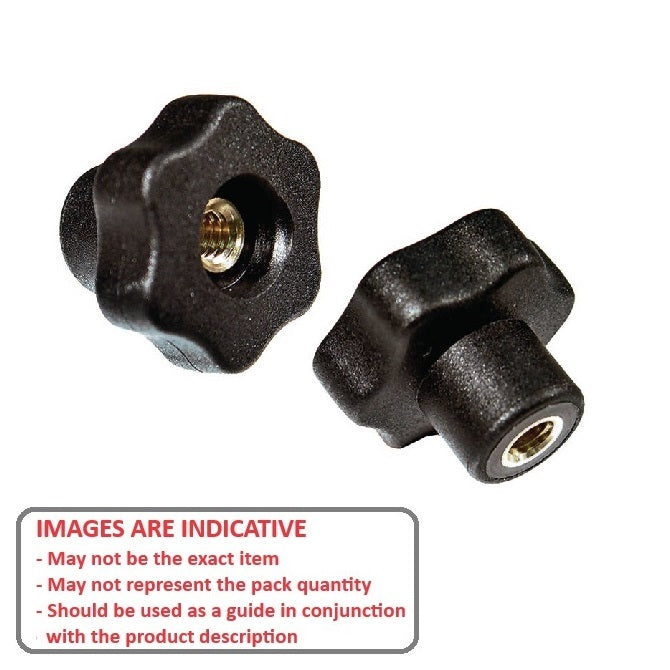

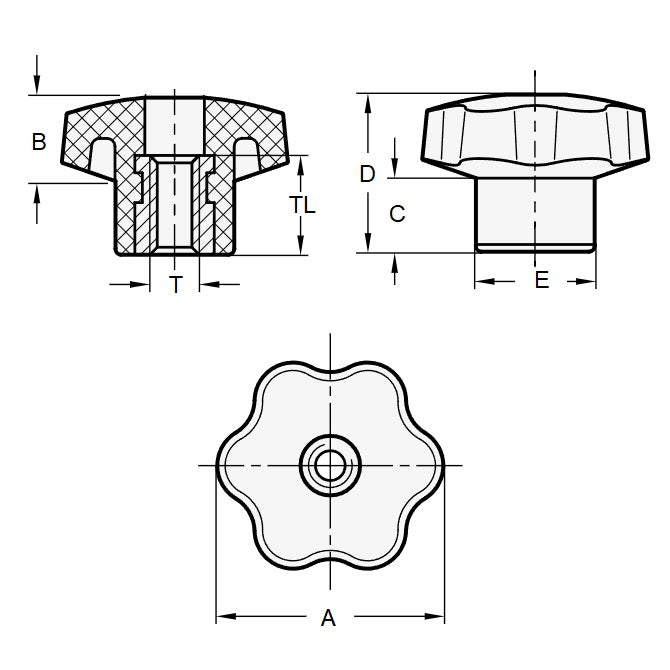

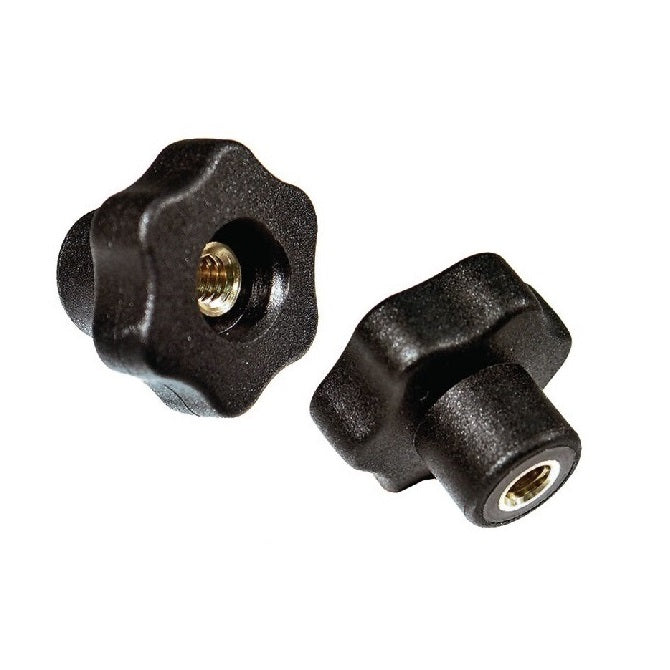

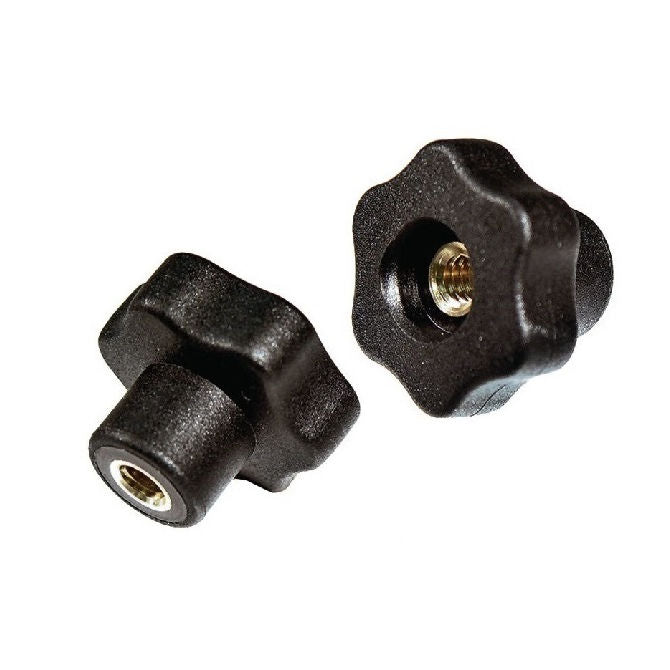

KF064C-030-6L-PBRDiagramKF064C-030-6L-PBRImage
