Miniature Bearings Australia

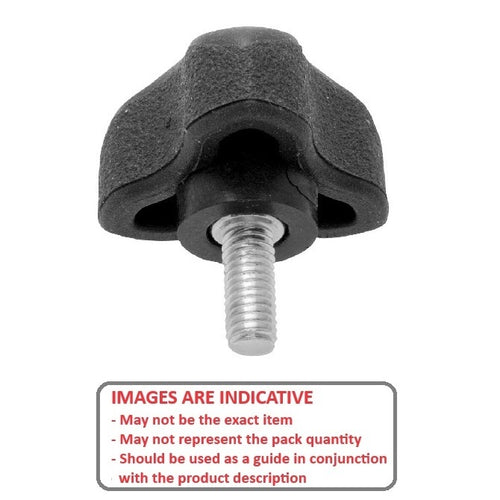

KM064C-030-3LL-SFT - Datasheet
MBA
Category Information
Knobs - Lobe - Three Lobe - Male - Soft TouchSoft Touch Male Three Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 1/4-20 UNC (6.35mm)

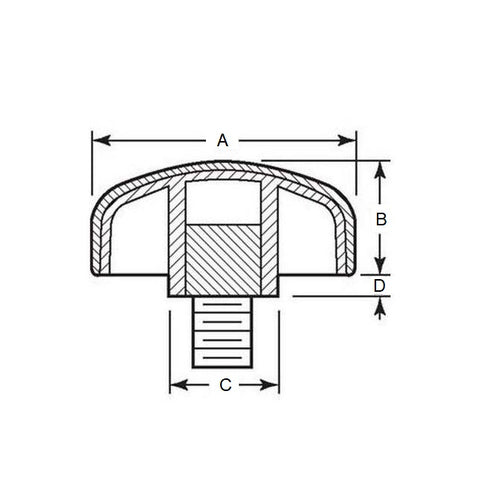

- Head Diameter (A)
29.97
mm
(Equiv. 1.18 in.) - Thread Length
25.4
mm
(Equiv. 1 in.) - Colour Black
- Hub Diameter (C) 12.70 mm
- Hub Length (D) 3.81 mm
- Knob Height (B) 17.02 mm
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
Cross References
- 2776K19
- RK305
- RK-305
