KF064C-030-3L-SFT - Datasheet
MBA
Category Information

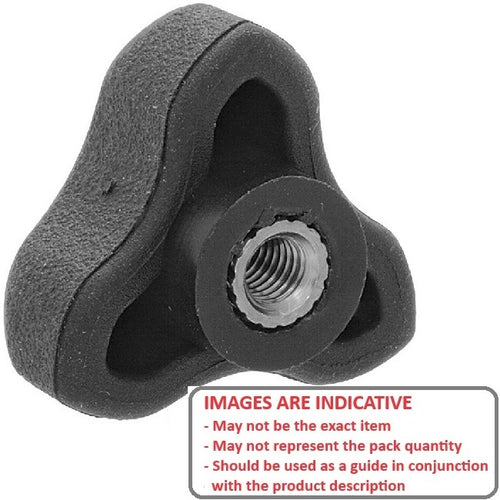

Knobs - Lobe - Three Lobe - Female - Soft TouchSoft Touch Female Three Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 1/4-20 UNC (6.35mm)

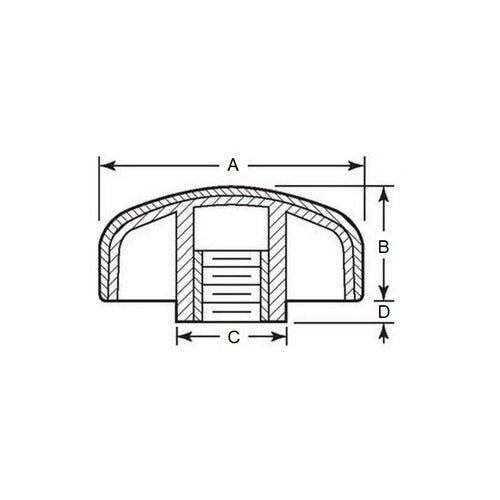

- Head Diameter (A)
29.97
mm
(Equiv. 1.18 in.) - Thread Length
14.0
mm
(Equiv. 0.551 in.) - Colour Black
- Hub Diameter (C) 12.70 mm
- Hub Length (D) 3.81 mm
- Knob Height (B) 17.02 mm
- Material Zinc Plated Brass
Product Compliance and Data
Additional Resources
Cross References
- 2776K5
- RK-301
- RK301
