Miniature Bearings Australia
KF064C-025-4LB - Datasheet
MBA
Category Information

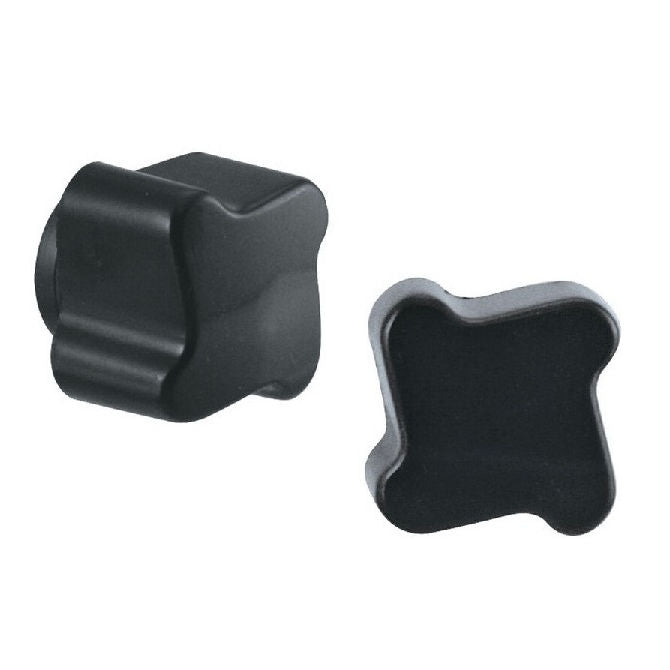

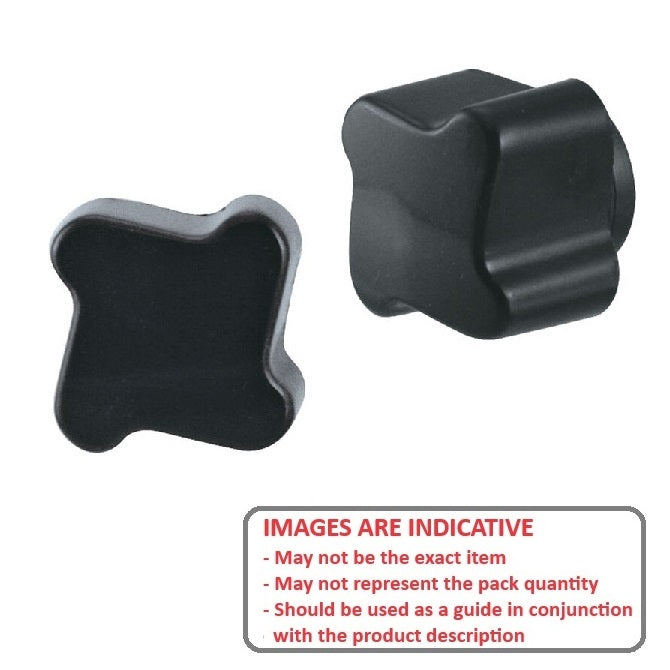

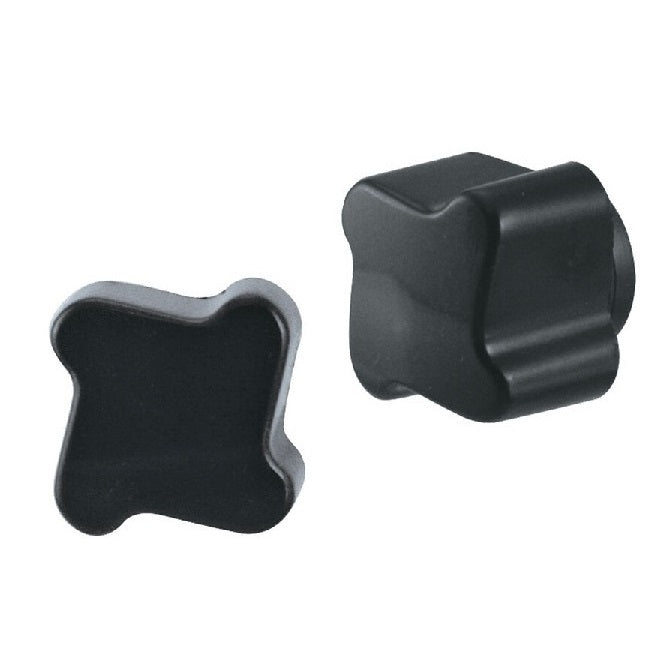

Knobs - Lobe - Four Lobe - Female - StandardStandard Female Four Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 1/4-20 UNC (6.35mm)

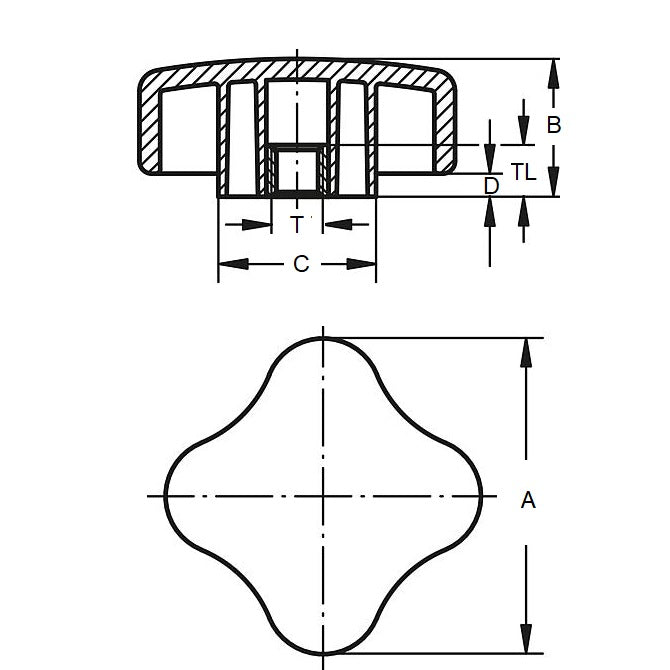

- Head Diameter (A)
24.89
mm
(Equiv. 0.98 in.) - Thread Length
9.9
mm
(Equiv. 0.39 in.) - Colour Black
- Hub Diameter (C) 16.00 mm
- Hub Length (D) 4.06 mm
- Knob Height (B) 19.05 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- RST-75
- RST75
