KF064C-025-4L-P - Datasheet
MBA
Category Information

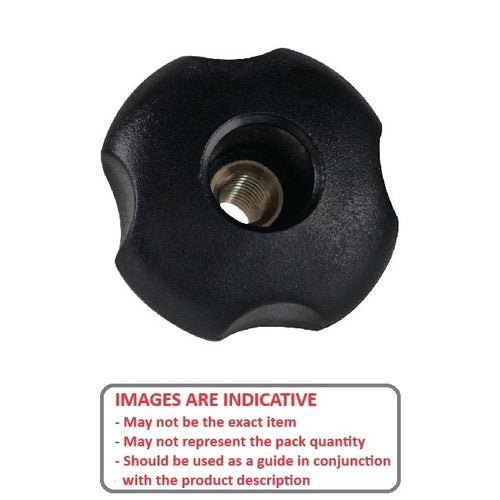

Knobs - Lobe - Four Lobe - Female - Through HoleThrough Hole Female Four Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 1/4-20 UNC (6.35mm)

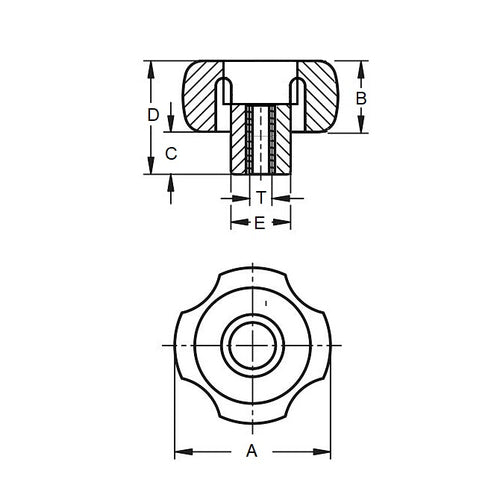

- Head Diameter (A)
24.89
mm
(Equiv. 0.98 in.) - Thread Length
9.7
mm
(Equiv. 0.382 in.) - Colour Black
- Hub Diameter (E) 11.94 mm
- Hub Length (C) 6.10 mm
- Knob Height (D) 14.99 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- JCL-145
- JCL145
