KM064C-025-NGL - Datasheet

MBA

Category Information

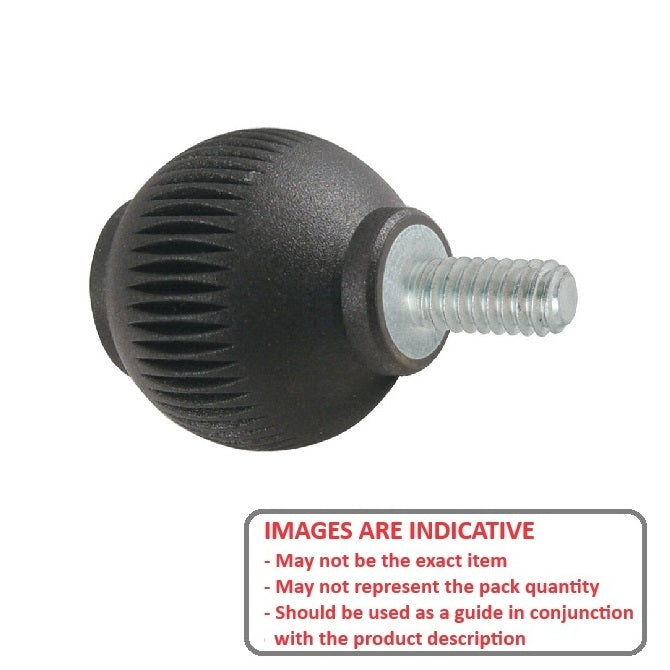

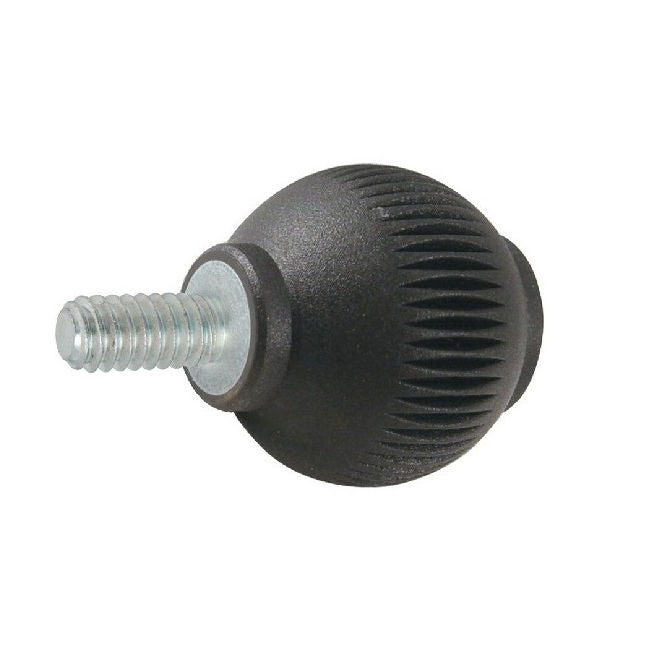

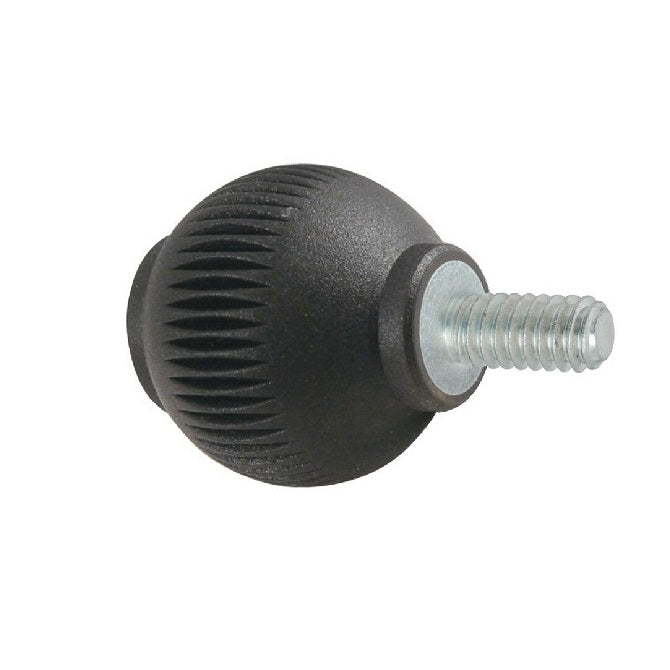

Knobs - Ball - Male Threaded - Novo-Grip

Novo-Grip Male Threaded Ball Knobs. Ergonomic Shape for easy gripping

  • An expanded range may be available on special order. Please enquire.
  • Unique styling for a very distinctive look
  • Belt fluting for non-slip gripping
  • Black thermoplastic with steel or stainless steel studs

Product Data

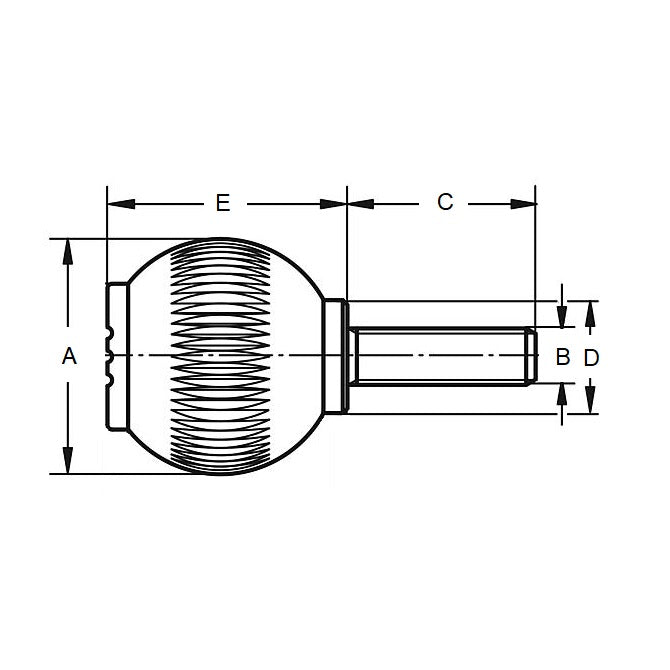

  • Thread Size : 1/4-20 UNC (6.35mm)
  • Head Diameter (A) 24.89 mm
  • Thread Length (C) 30.0 mm
  • Base Diameter (D) 11.94 mm
  • Body Height (E) 24.89 mm
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Reid Tool® GK-455
  • GK455
View full details
KM064C-025-NGLDiagramKM064C-025-NGLImage
