KM064C-025-3L - Datasheet

MBA

Category Information

Knobs - Lobe - Three Lobe - Male - Standard

Standard Male Three Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 1/4-20 UNC (6.35mm)
  • Head Diameter (A) 24.89 mm
  • Thread Length 12.7 mm
  • Colour Black
  • Hub Diameter (C) 12.95 mm
  • Hub Length (D) 5.08 mm
  • Knob Height (B) 16.00 mm
  • Material Plated Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Reid Tool® RST-128
  • RST128
View full details

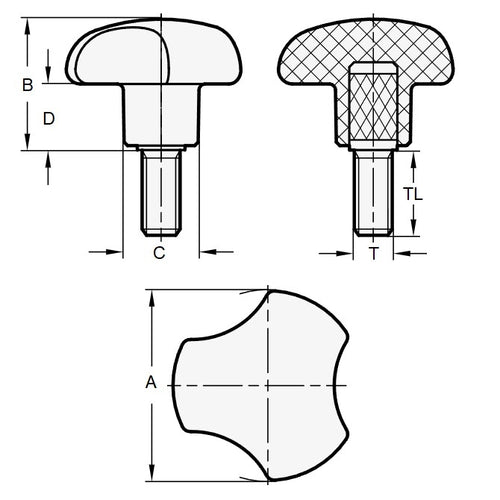

KM064C-025-3LDiagramKM064C-025-3LImage
