NT064C-QC-CB - Datasheet
MBA
Category Information

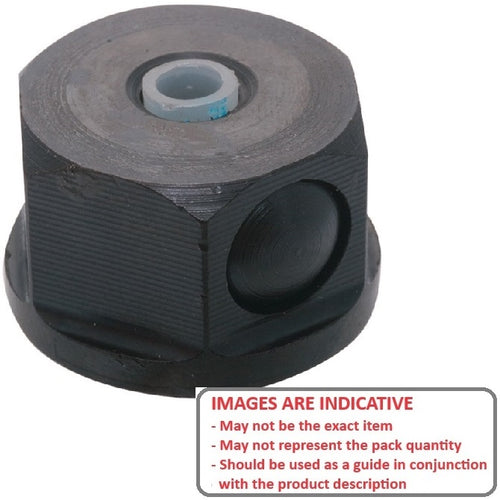

Nuts - Quick ReleaseQuick Release Nuts. UNC
- Carbon steel, black oxide finish.
- Button Thread nuts allow quick fixturing on long thread lengths.
- Simply press the button and the threads are disengaged to allow easy movement up or down the screw.
- Release the button and the threads engage for normal turning.
Product Data
- Thread Size : 1/4-20 UNC (6.35mm)

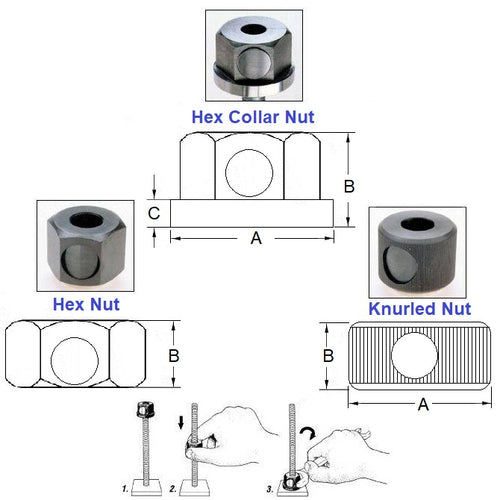

- Across Flats (A/F)
22.22
mm
(Equiv. 0.875 in.) - Height (B) 15.87 mm
- Flange Thickness (C) 3.170 mm
- Type Hex with Collar
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- BCL-130
- BCL130
