SS064C-0191-AS - Datasheet

Brighton Best

Product Data

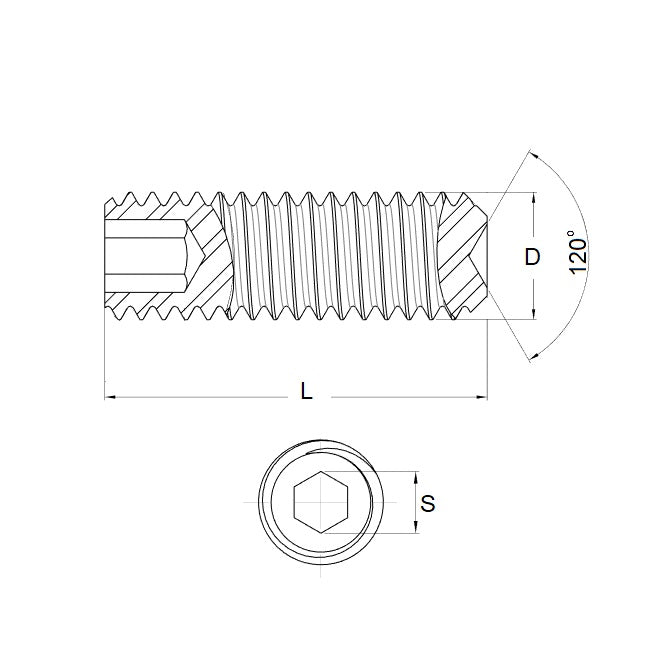

• Thread Size : 1/4-20 UNC (6.35mm)
• Thread Length (L) 19.1 mm
  (Equiv. 0.752 in.)
• Type Standard Cup Point
• Hex Key Size 3.18 (1/8)
• Pitch 1.270 mm
• Threads Per Inch 20 TPI

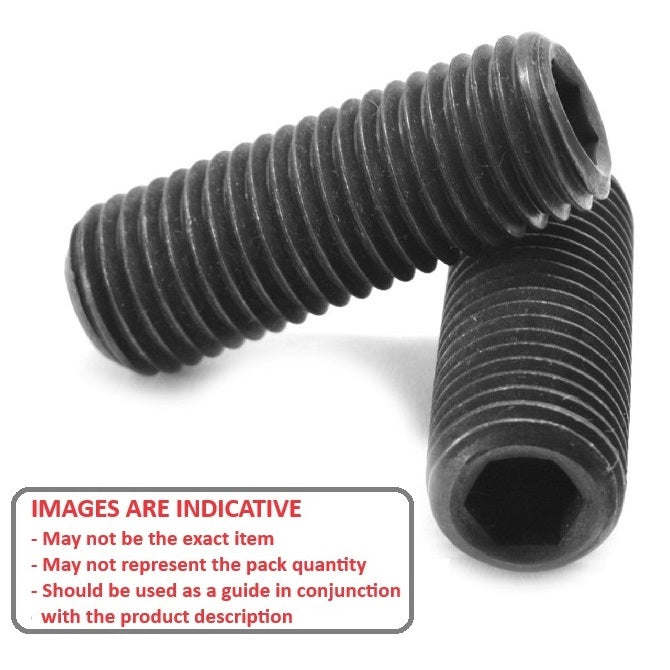

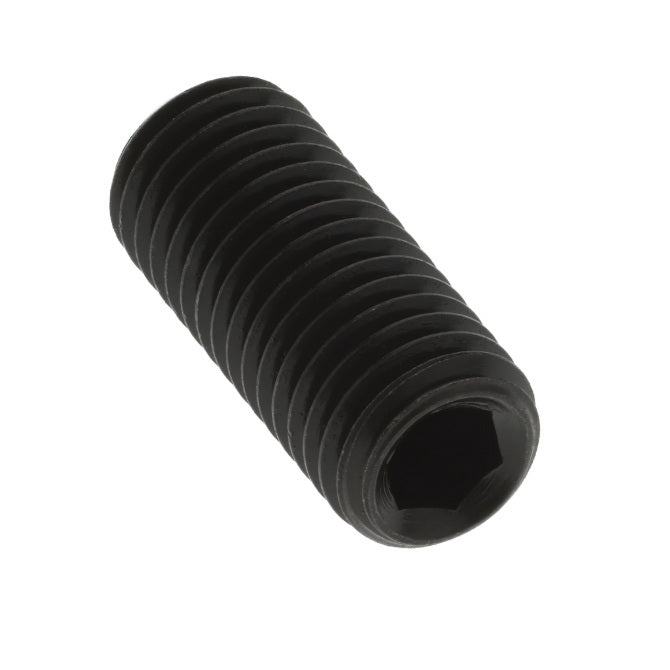

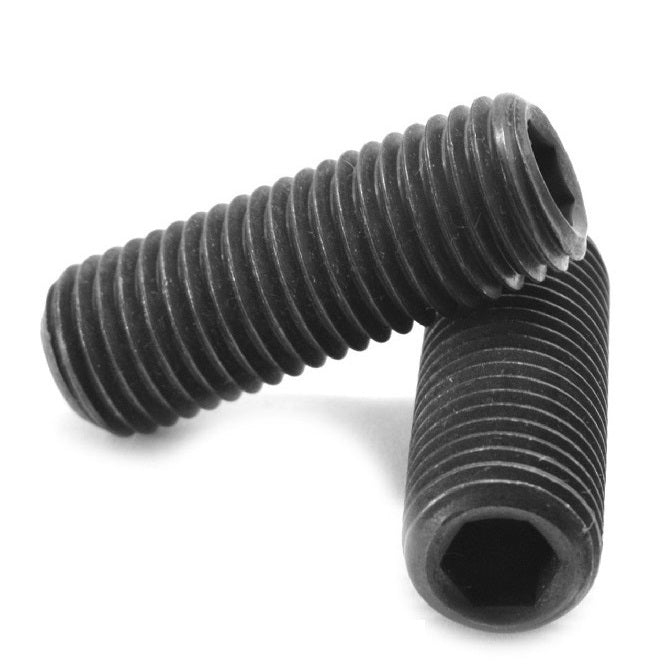

• Finish Hardened, Black Oxide Coated
• Material Carbon Steel - Hardened GD14.9

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Socket Set Screws Master PDF

• Assortment Kits


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 91375A540
• Small Parts SSAS-1420-12
• BRB101321P
• BRB-101321P
• SSAS142012
• HK-32124
• HK32124
