SS064C-0191-AS-FT - Datasheet
MBA
Category Information

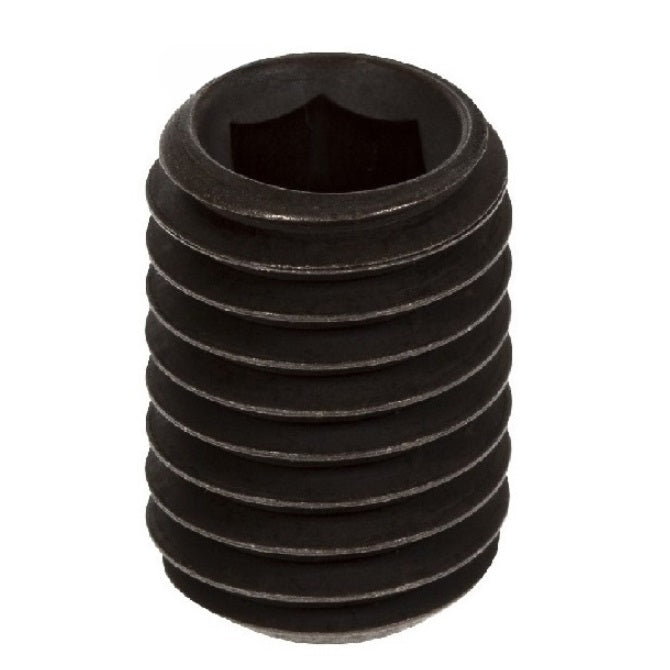

Socket Set Screws - Flat Tip DIN913 - Alloy SteelAlloy Steel Flat Tip DIN913 Socket Set Screws. Flat tip grub screws
- Socket driven grub screws with a solid flat tip.
Product Data
- Thread Size : 1/4-20 UNC (6.35mm)
- Thread Length (L)
19.1
mm
(Equiv. 0.752 in.) - Type Flat Tip
- Hex Key Size 3.18 (1/8)
- Pitch 1.270 mm
- Threads Per Inch 20 TPI
- Finish Hardened, Black Oxide Coated
- Material Carbon Steel - Hardened
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 94105A539
- BRB-151241P
- BRB151241P
