KF064C-019-3L-BHST - Datasheet
MBA
Category Information

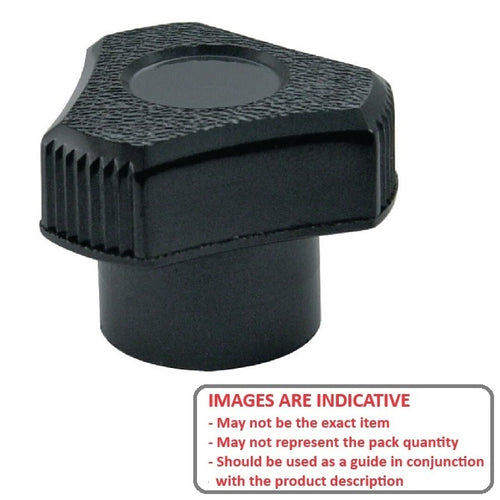

Knobs - Lobe - Three Lobe - Female - Blind Hole Solid TopBlind Hole Solid Top Female Three Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size : 1/4-20 UNC (6.35mm)

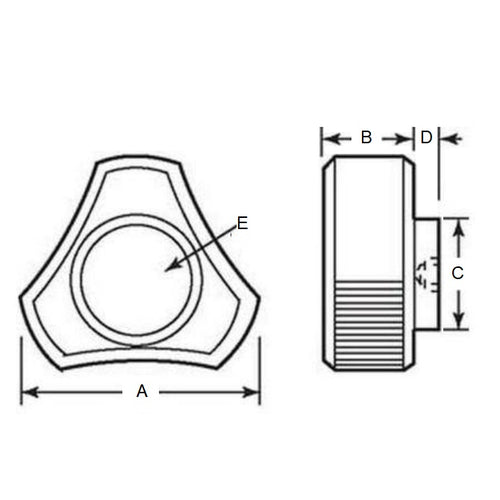

- Head Diameter (A)
19.05
mm
(Equiv. 0.75 in.) - Thread Length
9.5
mm
(Equiv. 0.374 in.) - Colour Black
- Hub Diameter (C) 11.11 mm
- Hub Length (D) 11.51 mm
- Knob Height (B) 7.14 mm
- Recess Diameter (E) 7.52 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- DK-601
- DK601
