THS064C-019-K-BZ-WF - Datasheet
MBA
Category Information

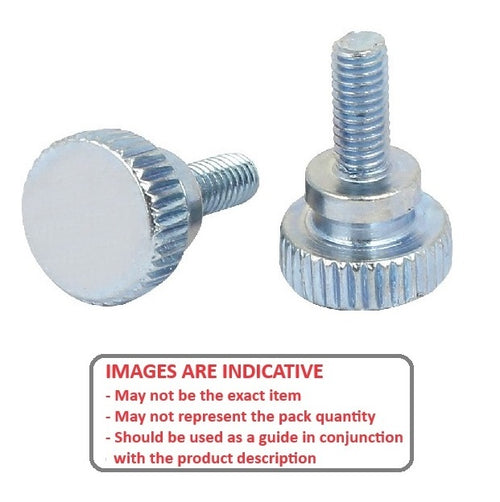

Screws - Thumb - Knurled - Washer Face - BrassBrass Washer Face Knurled Thumb Screws. Knurled head brass thumb screws with an integral washer
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 1/4-20 UNC (6.35mm)
- Thread Length (D)
19.05
mm
(Equiv. 0.75 in.) - Overall Length (C)
28.58
mm
(Equiv. 1.125 in.) - Head Diameter (A) 12.70 mm
- Head Height (B) 6.35 mm
- Finish Zinc, Clear Chrome Plated
- Washer Diameter (E) 9.53 mm
- Material Brass
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 92421A540
- AJ848
- AJ-848
