SC064C-019-C-SK-C-NL - Datasheet
MBA
Category Information

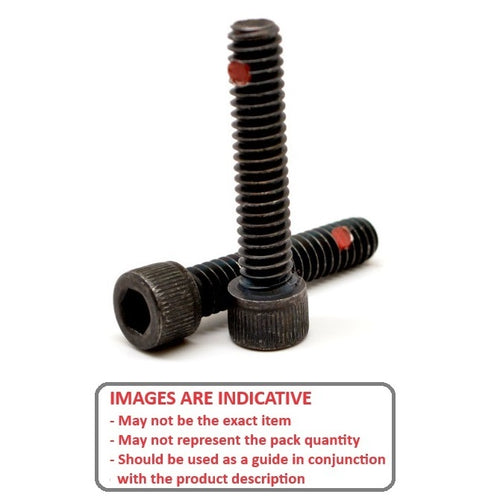

Screws - Socket Cap - Alloy Steel - Nylon LockingNylon Locking Alloy Steel Socket Cap Screws. Alloy steel socket cap screws with nylon locking pellet
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : 1/4-20 UNC (6.35mm)
- Thread Length (L)
19.05
mm
(Equiv. 0.75 in.) - Material Black Oxide Carbon Steel
- Head Length (B Max.) 6.35 mm
- Head Diameter (A Max.) 9.53 mm
- Shank Diameter (C) 6.18 - 6.35 mm
- Pellet Diameter 2.80 mm
- Material Steel Alloy
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- TNT330
- TNT-330
