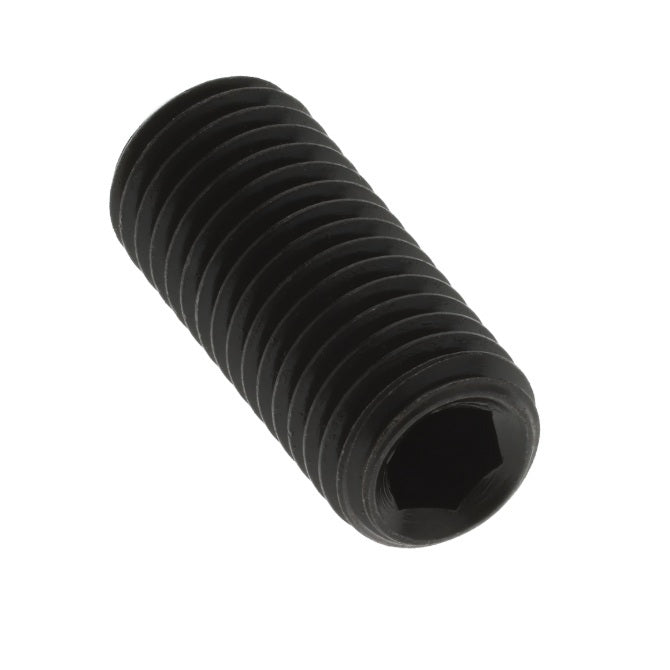

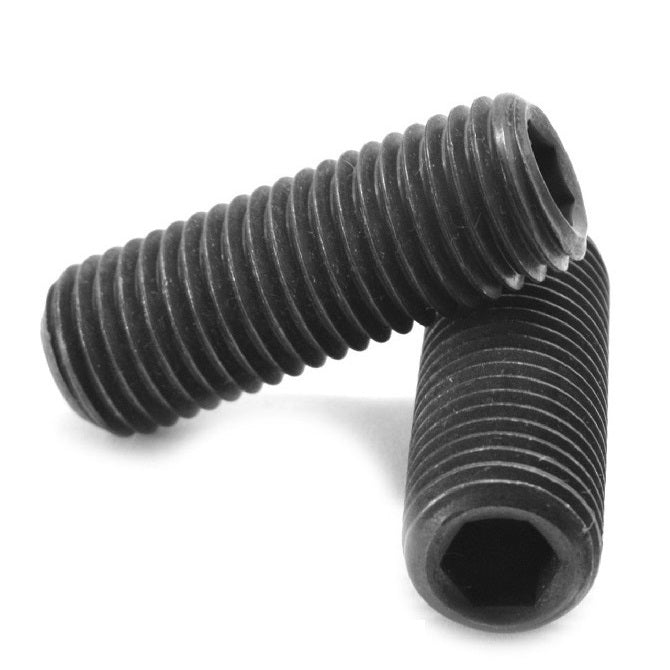

SS064C-0127-AS - Datasheet

Brighton Best

Product Data

• Thread Size : 1/4-20 UNC (6.35mm)
• Thread Length (L) 12.7 mm
  (Equiv. 0.5 in.)
• Type Standard Cup Point
• Hex Key Size 3.18 (1/8)
• Pitch 1.270 mm
• Threads Per Inch 20 TPI
• Finish Hardened, Black Oxide Coated
• Material Carbon Steel - Hardened GD14.9

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Socket Set Screws Master PDF

• Assortment Kits


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 91375A537
• Small Parts SSAS-1420-8
• BRB101317P
• BRB-101317P
• SSAS14208
• HK32120
• HK-32120
