SK064C-013-SL-S4 - Datasheet
MBA
Category Information

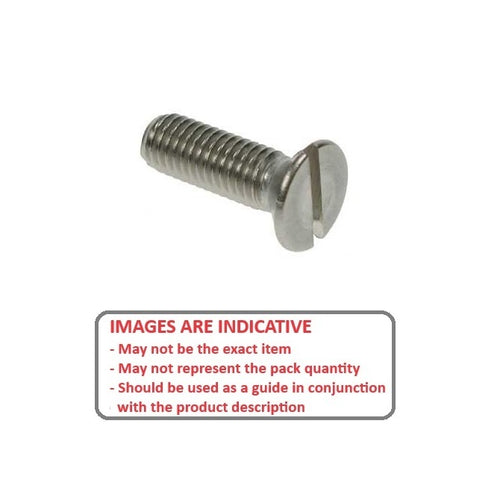

Screws - Countersunk - Slotted - 304 Stainless304 Stainless Slotted Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC.
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

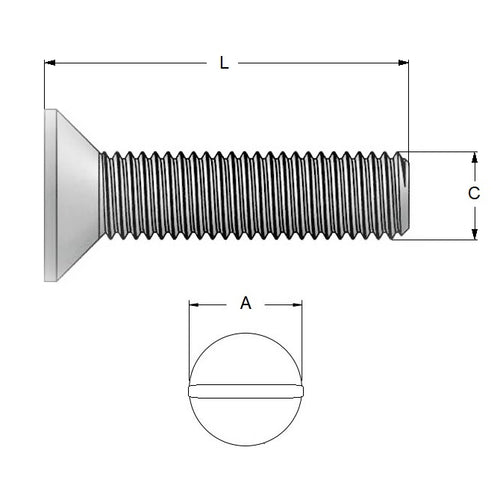

- Thread Size (C) : 1/4-20 UNC (6.35mm)
- Overall Length (L)
12.7
mm
(Equiv. 0.5 in.) - Material 304 Stainless
- Max Head Diameter (A) 12.12 mm
- Max Head Height 3.89 mm
- Type Countersunk / Slotted
- Pitch 1.270 mm
- Threads Per Inch 20 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 91781A537
- Small Parts MX-1420-8F
- A9X16F252008
- A9X16-F252008
- A 9X16-F252008
- MX14208F
