SC064C-013-SQ-C-CP - Datasheet
MBA
Category Information

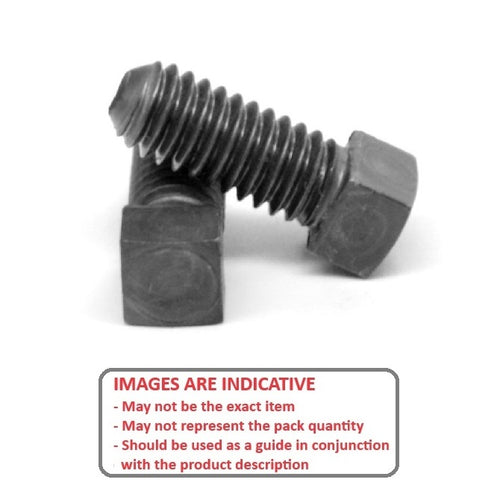

Screws - Set - Cup Point - Square HeadSquare Head Cup Point Set Screws. Grade 8 hreat treated alloy steel. All screws are threaded to the head.
Product Data

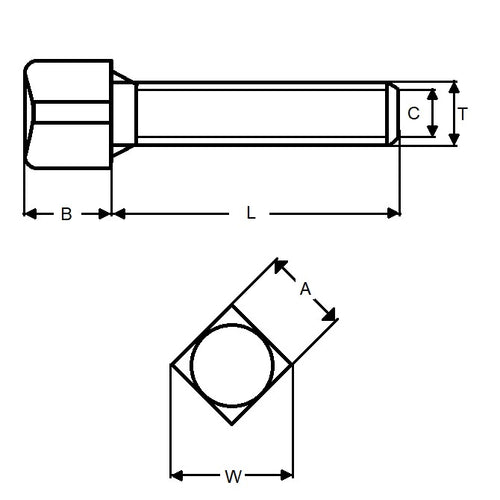

- Thread : 1/4-20 UNC (6.35mm)
- Thread Length (L)
12.700
mm
(Equiv. 0.5 in.) - Head Flats (A)
6.350
mm
(Equiv. 0.25 in.) - Head Height (B) 4.740 mm
- C 3.170 mm
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- MAC5
- MAC-5
