THS064C-013-K-AL-WF - Datasheet
MBA
Category Information

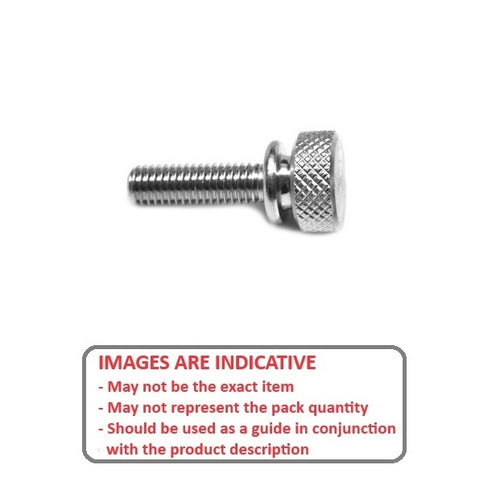

Screws - Thumb - Knurled - Washer Face - AluminiumAluminium Washer Face Knurled Thumb Screws. Knurled head aluminum thumb screws with an integral washer
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 1/4-20 UNC (6.35mm)
- Thread Length (D)
12.70
mm
(Equiv. 0.5 in.) - Overall Length (C)
22.23
mm
(Equiv. 0.875 in.) - Head Diameter (A) 12.70 mm
- Head Height (B) 6.35 mm
- Finish Plain
- Washer Diameter (E) 9.53 mm
- Material Aluminium
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 94567A510
- AJ902
- AJ-902
