CHE-51RS - Datasheet
MBA
Category Information

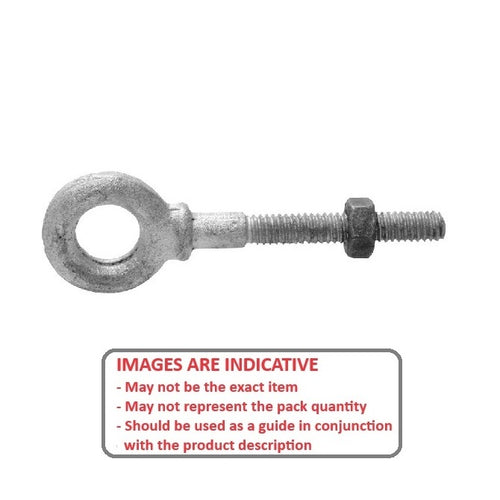

Eye Bolts - Partial Threaded Shank - Shouldered - Carbon SteelCarbon Steel Shouldered Partial Threaded Shank Eye Bolts. Hot galvanised finished steel with machine thread.
- Any deviations such as angular lifts, shock loads, modifications of the basic forging etc will result in drastically reduced maximum loads.
Product Data

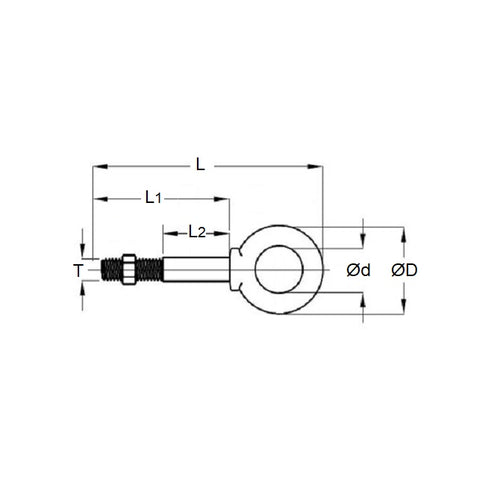

- Thread Size : 1/4-20 UNC (6.35mm)
- Shank Length
50.800
mm
(Equiv. 2 in.) - Eye Inside Diameter
12.700
mm
(Equiv. 0.5 in.) - Rated Capacity 227 Kg
Product Compliance and Data
Additional Resources
Cross References
- 3018T14
