SPANC-064C-032 - Datasheet

MBA

Category Information

Spring Anchors - Steel

Steel Spring Anchors. C-12114 steel selection. Black oxide finish.

  • An economical way to secure the ends of extension springs, and provide easy adjustment.

Product Data

  • Thread : 1/4-20 UNC (6.35mm)

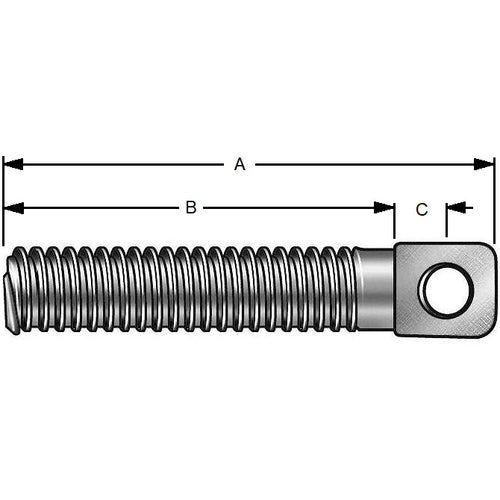

  • Overall Length (A) 31.750 mm
    (Equiv. 1.25 in.)
  • Thread Length (B) 22.225 mm
    (Equiv. 0.875 in.)
  • Thread to Centre Eye (C) 3.302 mm
  • Hole Size 2.540 mm
  • Load 226 Kg
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 9634K23
  • CSA70RS
View full details

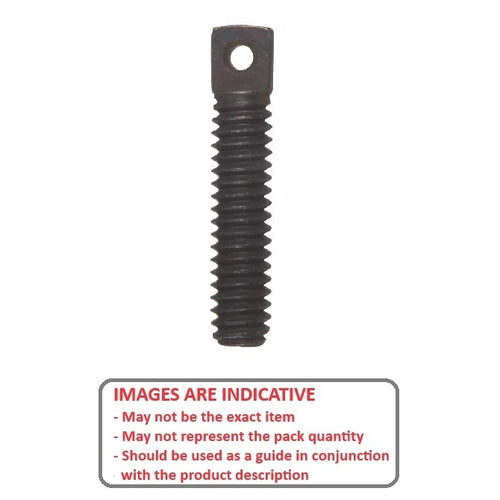

SPANC-064C-032DiagramSPANC-064C-032Image
