SSA-70RS - Datasheet

MBA

Category Information

Spring Anchors - Stainless Steel

Stainless Steel Spring Anchors. An economical way to secure the ends of extension springs, and provide easy adjustment.

  • 300 Grade Stainless Steel

Product Data

  • Thread : 1/4-20 UNC (6.35mm)
  • Overall Length (A) 31.750 mm
    (Equiv. 1.25 in.)
  • Thread Length (B) 22.225 mm
    (Equiv. 0.875 in.)
  • Thread to Centre Eye (C) 3.302 mm
  • Hole Size 2.540 mm
  • Load 226 Kg
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 95907A480
View full details

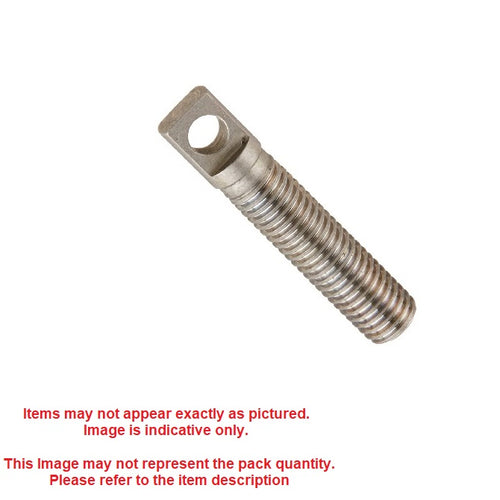

SSA-70RSDiagramSSA-70RSImage
