KLI-064C-095-09 - Datasheet

MBA

Category Information

Thread Repair - Inserts - Keylocking

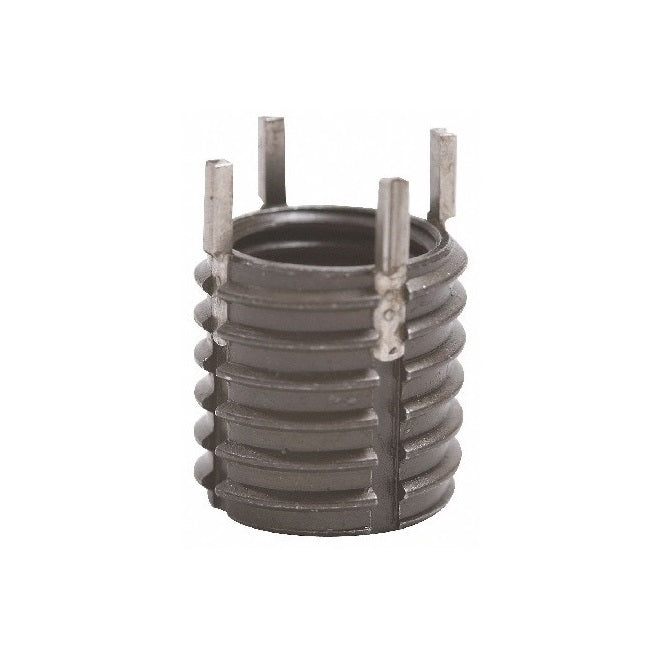

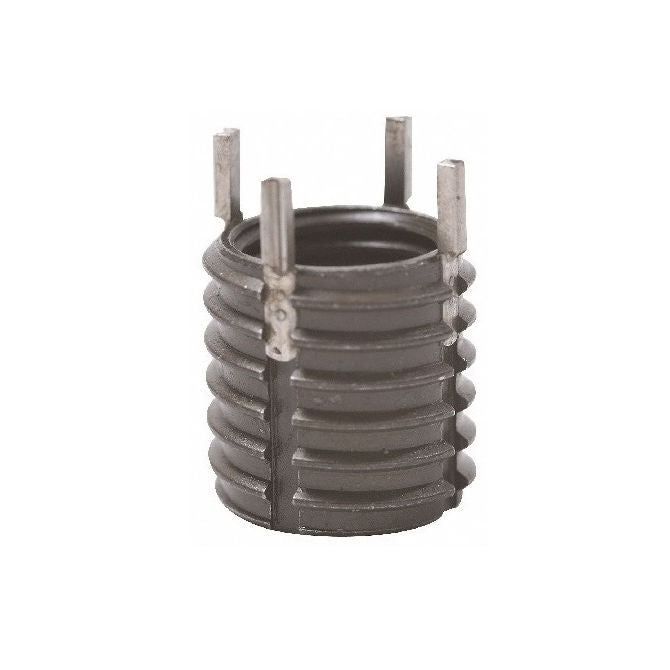

Keylocking Inserts Thread Repair. Steel or 303 Stainless Steel as indicated in the tables. Also known as keenserts.

  • Steel or 303 Stainless Steel as indicated in the tables
  • Maximum strength and reliability.
  • Positive mechanical lock against rotation:.
  • The insert kees are driven down into the tapped threads of the parent material during installation to securely lock the insert against rotation.
  • Inserts with internal thread lock are designed to securely lock a bolt when it is entered into the insert only a few turns.

Product Data

  • Internal Thread : 1/4-20 UNC (6.35mm)
  • External Thread 3/8-16 UNC (9.53mm)
  • Length 9.398 mm
    (Equiv. 0.37 in.)
  • Tap Drill Diameter 8.43 mm
  • Countersink Diameter 9.652 mm
  • Locking Keys 4
  • Tapped Hole Depth 10.922 mm
  • Removal Drill Size 7.144 mm
  • Removal Drill Depth 3.175 mm
  • Installation Tool KLI-64722RS
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 92070A115
  • KLI65922
  • KLI-65922
