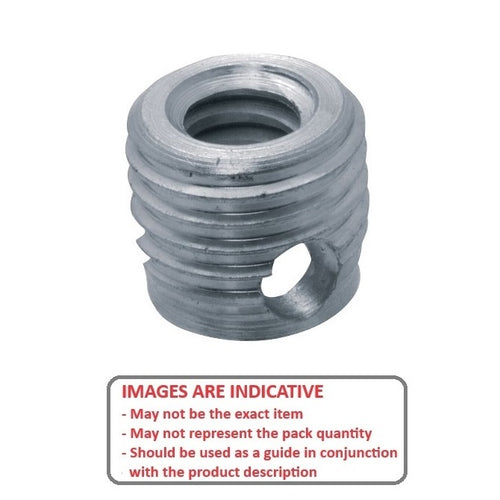

IN-TP-064C-140-P - Datasheet
MBA
Category Information
Inserts - Self Tapping - For Plastics - SteelSteel For Plastics Self Tapping Inserts. Threaded inserts are screwed into preformed or predrilled holes and cut own threads into the wall of permanent installations.
- Provides a strong wear and vibration resistant thread.
- Low volumes can be installed by winding in with a bolt through the threaded centre. Large volumes can be installed with hand installation tools (Sold Seperately)
- Hole sizes are reference only. Can variey on batchs. Optimum hole size is to be determinded through experimentation.
- A 60o countersink is required for flush mounting.
- Use with plastics, light metal alloys or hard wood. Made from steel with zinc chromate finish.

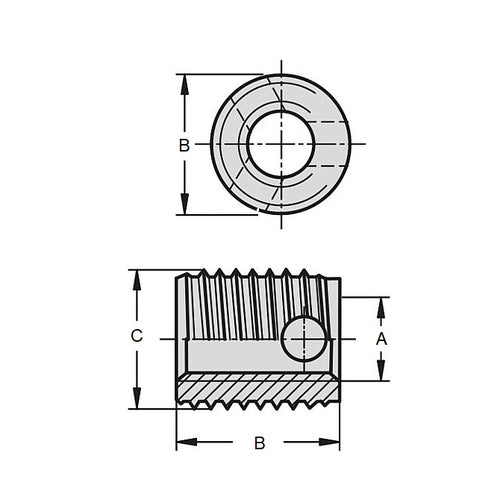

Product Data
- Internal Thread : 1/4-20 UNC (6.35mm)
- Rec. Hole Diameter
8.59
mm
(Equiv. 0.338 in.) - Length (L)
14.0
mm
(Equiv. 0.551 in.) - Outside Diameter (B) 10.008 mm
- Required Hole Depth 16.993 mm
- Soft Metals Hole Size 8.89
- Material to be used in Plastic, Light Metal Alloys and Hardwood
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- INTP0635C140P
