Miniature Bearings Australia
IN-TP-064C-13-WHL - Datasheet
MBA
Category Information

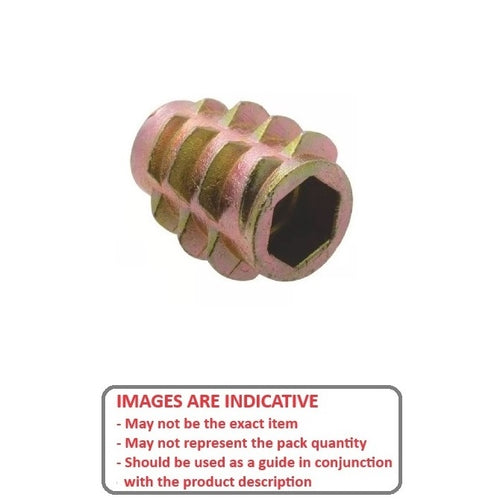

Inserts - Self Tapping - For Wood - Hex Drive - StandardStandard Hex Drive For Wood Self Tapping Inserts. Threaded inserts are screwed into preformed or predrilled holes and cut own threads into the wall of permanent installations.
- Die Cast Zinc Alloy. Knife thread cuts easily into a predrilled hole.
- Inexpensive inserts for use in ready to assemble furniture, drawer pulls etc.
- Installs with a hex wrench

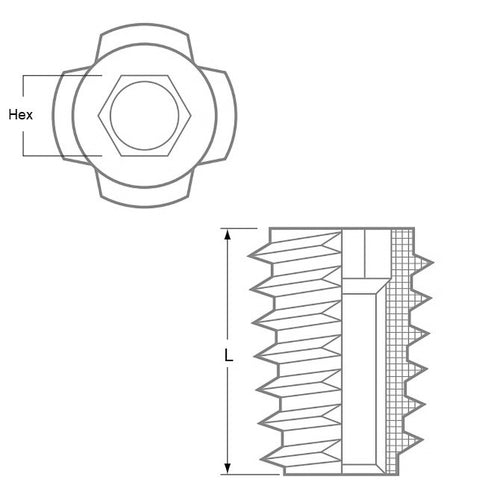

Product Data
- Internal Thread : 1/4-20 UNC (6.35mm)
- Rec. Hole Diameter
9.0
mm
(Equiv. 0.354 in.) - Length (L)
13.005
mm
(Equiv. 0.512 in.) - Hex Size 6.0
Product Compliance and Data
Additional Resources
Cross References
- INTP0635C130WH
