EB-285RS - Datasheet

MBA

Category Information

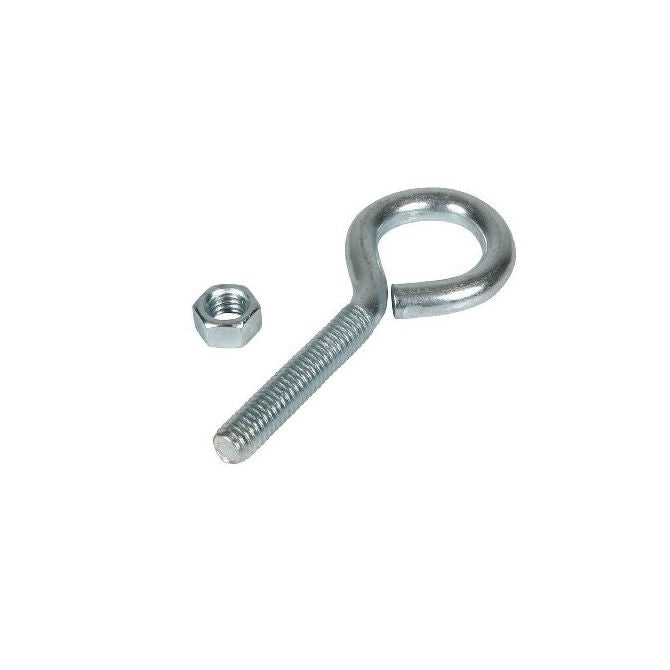

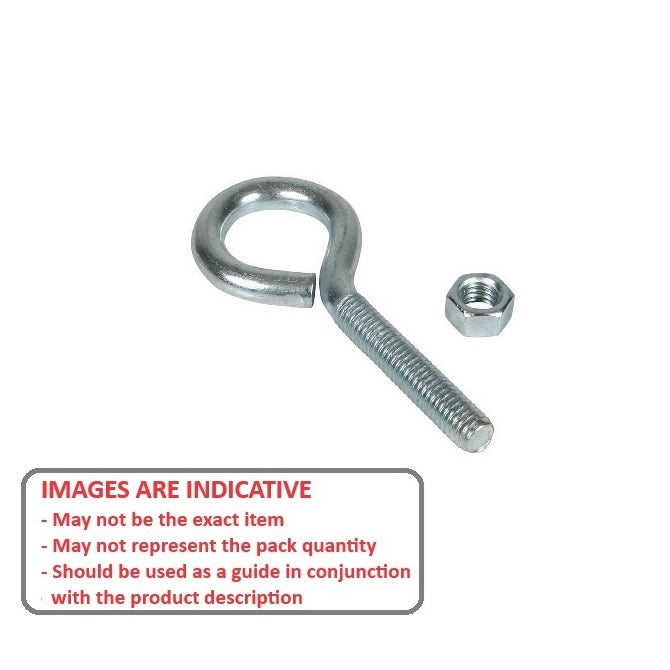

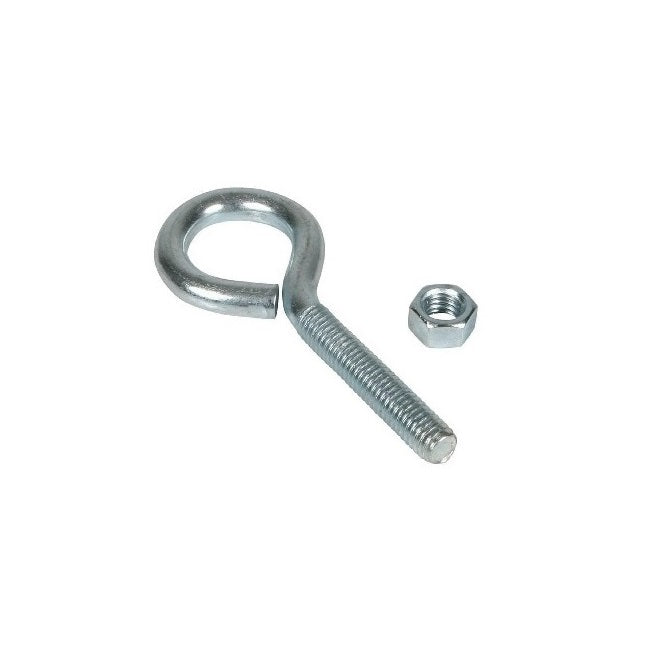

Eye Bolts - Bent - Steel

Steel Bent Eye Bolts. Not recommended for lifting.

  • Fastener with a loop or eye at one end, and a threaded shank on the other.
  • Used to attach ropes or cables to secure objects by screwing the threaded end into a structure, with the loop providing an anchor point.
  • Carbon steel zinc plated.
  • Complete with nut.
  • Rolled threads.

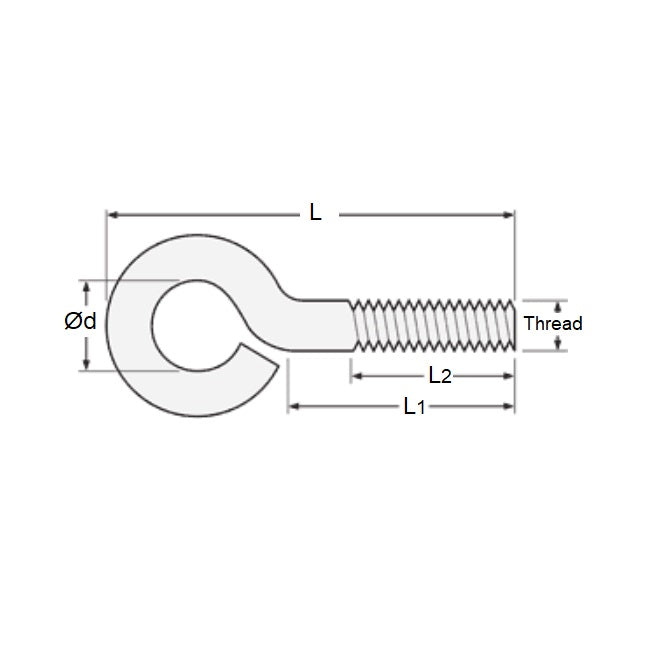

Product Data

  • Thread : 1/4-20 UNC (6.35mm)
  • Overall Length 101.600 mm
    (Equiv. 4 in.)
  • Shank Length 19.050 mm
    (Equiv. 0.75 in.)
  • Thread Length 6.350 mm
  • Eye Inside Diameter 4.763 mm
Country of Origin: US
