CMM-14225RS - Datasheet
MBA
Category Information

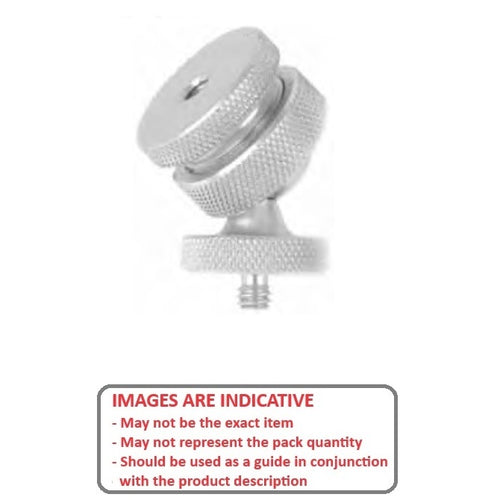

Joints - Ball PositionerBall Positioner Joints. For holding parts at an angle up to 45 degrees
- Pivots 45 Deg from horizontal in every direction
- Tightens at any position by rotating the collar
- Has a tapped hole at the top and a male thread at the bottom for securing
Product Data

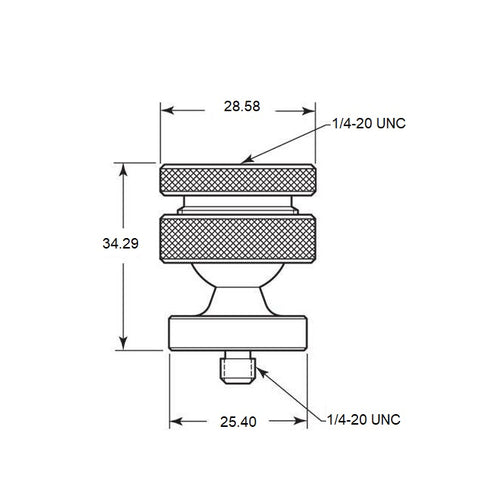

- Male Thread : 1/4-20 UNC (6.35mm)
- Female Thread 1/4-20 UNC (6.35mm)
- Major Diameter
28.58
mm
(Equiv. 1.125 in.) - Length 34.30 mm
- Minor Diameter 25.40 mm
- Max Angle 45 °
