IN-RIV-064C-028 - Datasheet
MBA
Category Information

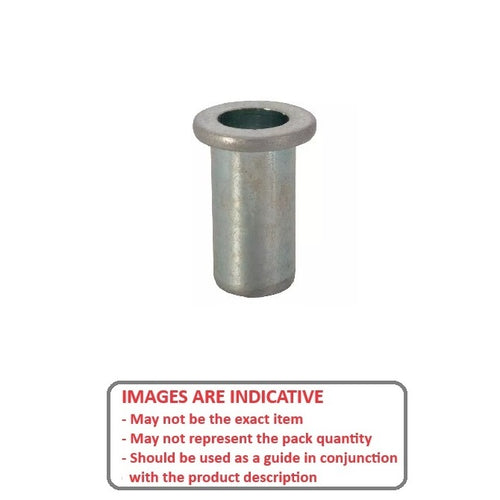

Inserts - Rivet Nuts - Klik - StandardStandard Klik Rivet Nuts Inserts. Individual Inserts for use with the Klik Thread Setter Tool
- These threaded inserts can be used in blind or through hole applications. Featuring a heavy duty thread profile and increased thickness in the collapse area.
- Steel with cadmium plating.
Product Data
- Internal Thread : 1/4-20 UNC (6.35mm)
- Drill Hole Size
8.43
mm
(Equiv. 0.332 in.) - Grip Range
0.50 - 2.83
mm

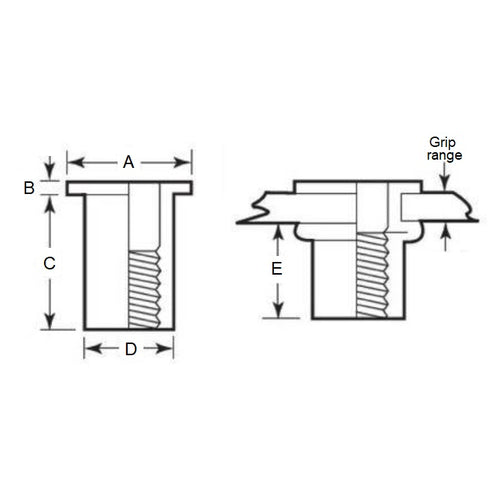

(Equiv. 0.02 in.) - Body Diameter (D) 8.43 mm
- Flange Diameter (F) 12.06 mm
- C 15.900 mm
- B 1.473 mm
- E 11.430 mm
- 0.50 - 2.83
Product Compliance and Data
Additional Resources
Cross References
- 93483A681
- ALC-47150
- ALC47150
