SC064W-010-R-SL-CZ - Datasheet
MBA
Category Information

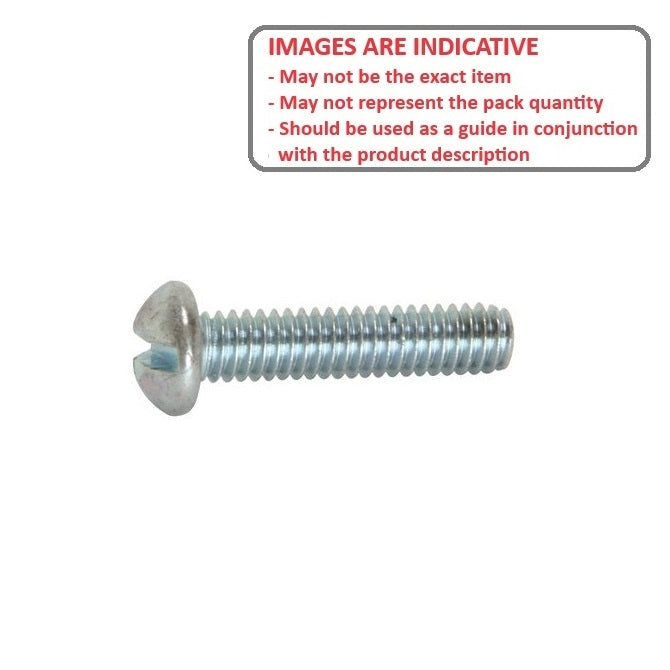

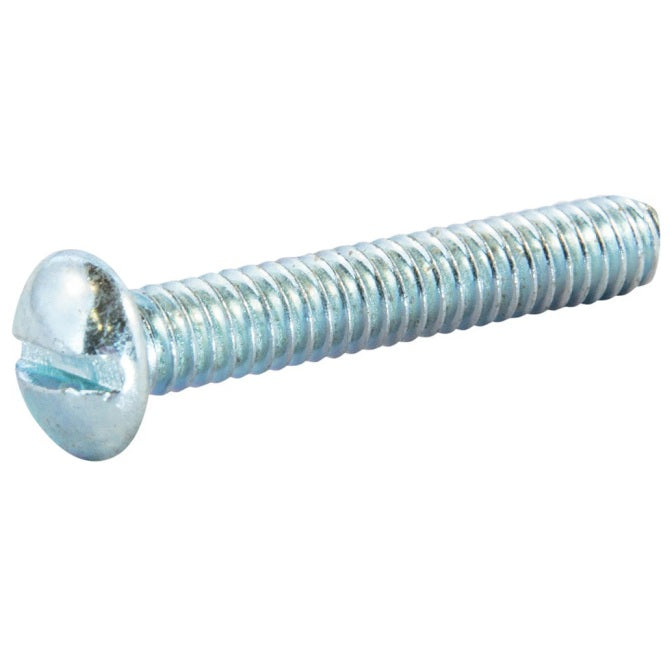

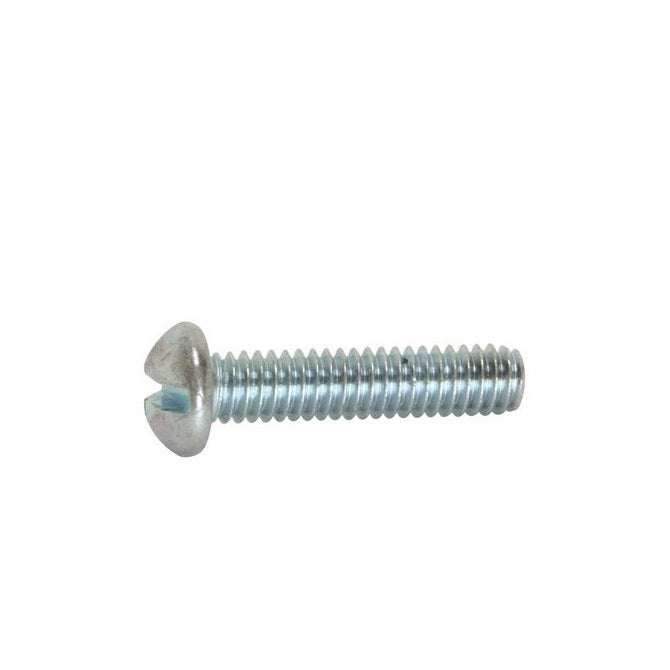

Screws - Round Head - Steel - SlottedSlotted Steel Round Head Screws. Metal Thread Screws. Metric and BSW only. Supplied with nut.
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

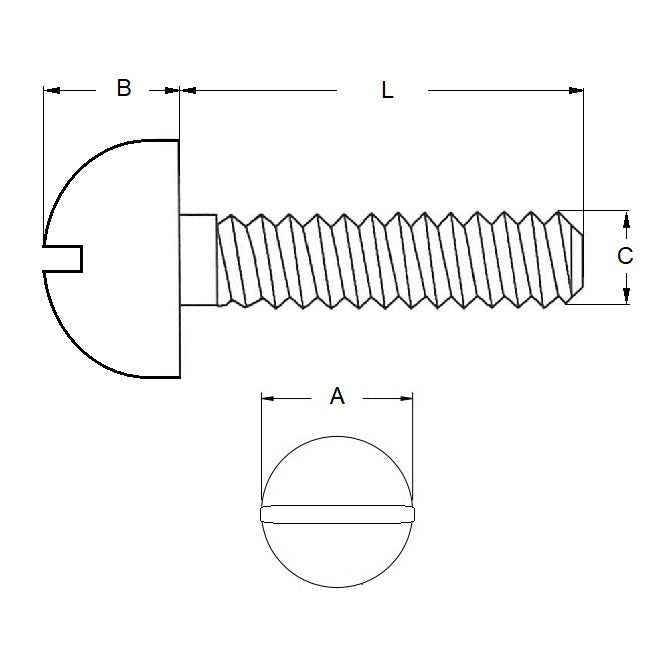

- Thread Size (C) : 1/4-20 BSW (6.35mm)
- Thread Length (L)
9.5
mm
(Equiv. 0.374 in.) - Material Zinc Plated Steel
- Max Head Diameter 11.99 mm
- Max Head Height 4.45 mm
- Type Round / Slotted
- Pitch 1.270 mm
- Threads Per Inch 20 TPI
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Hitech MSRSZP1438
