SC064W-076-P-PH-S4 - Datasheet
Brighton Best
Category Information

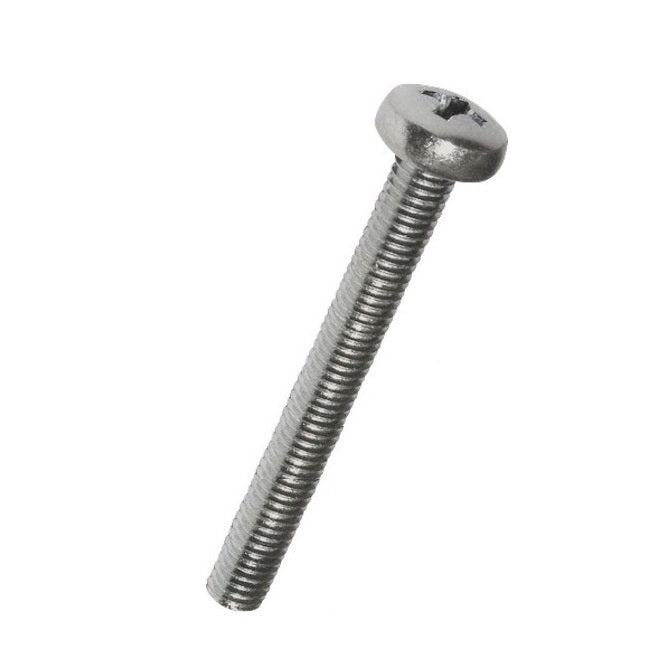

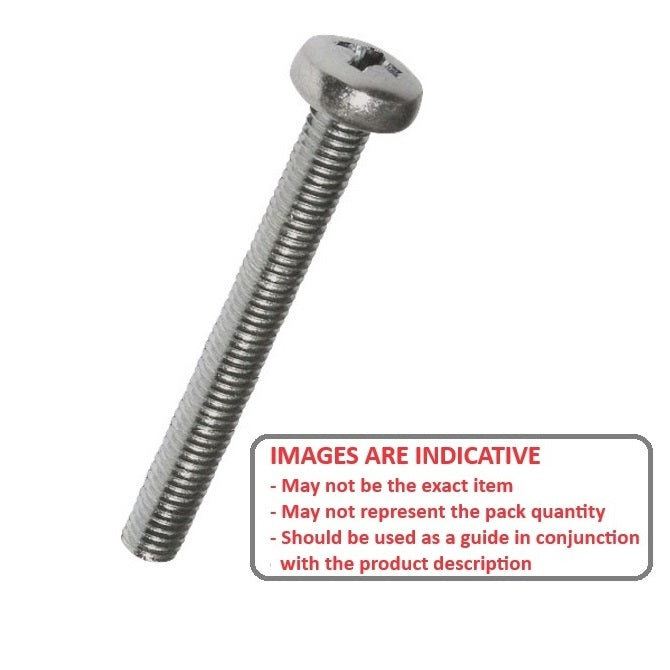

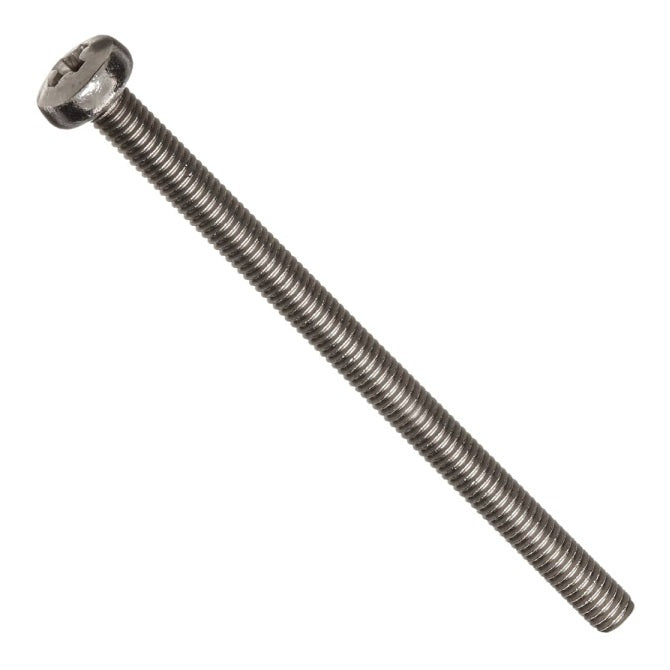

Screws - Pan Head - Phillips - 303-304 Stainless303-304 Stainless Phillips Pan Head Screws. Metal Thread Screws UNC - UNF - METRIC - Pan, cheese, fillister and round head.
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data

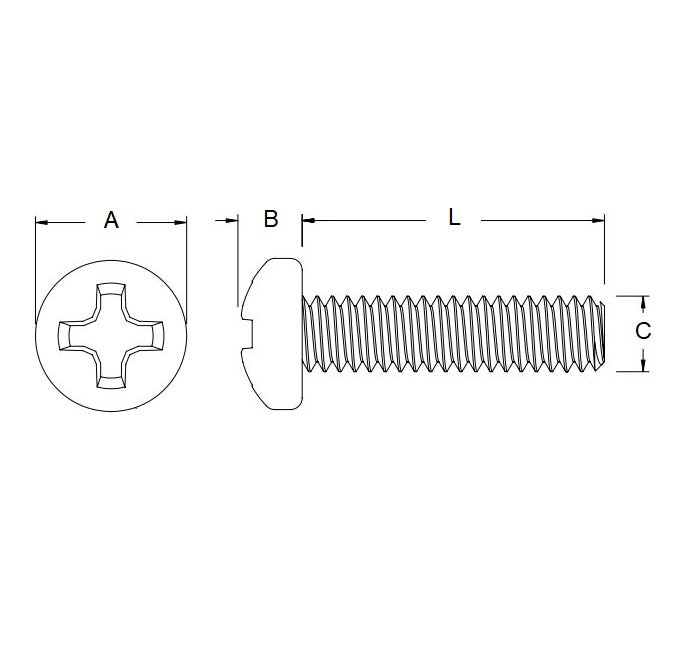

- Thread Size (C) : 1/4-20 BSW (6.35mm)
- Thread Length (L)
76.2
mm
(Equiv. 3 in.) - Material 304 Stainless
- Max Head Diameter 12.5 mm
- Max Head Height 3.7 mm
- Pitch 1.270 mm
- Threads Per Inch 20 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 773976
